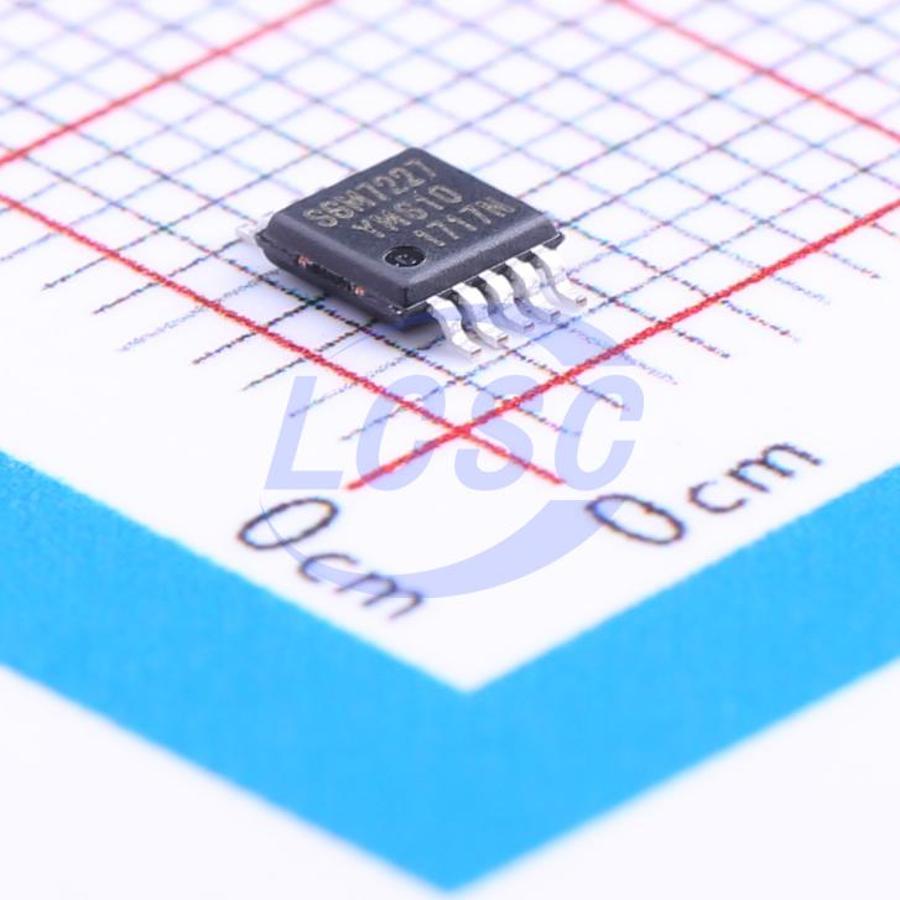

SGM7227YMS10G/TR The SG Micro Corp SGM7227YMS10G/TR is a DPDT analog switch designed for high-speed signal routing. It operates from a 1.8V to 4.3V supply and offers a wide bandwidth.
Mfr Part #:

SGM7227YMS10G/TR

Available from 2 distributors
Mfr Name: SG Micro Corp
SG Micro Corp
The SG Micro Corp SGM7227YMS10G/TR is a DPDT analog switch designed for high-speed signal routing. It operates from a 1.8V to 4.3V supply and offers a wide bandwidth.
✓ Total Stock: 3,272 pcs

SGM7227YMS10G/TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,147 pcs
On Request
3147 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SGM7227YMS10G/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Crosstalk
Data Rate
Mounting Type
Operating Temperature
Supply Voltage
Tape & Reel
View Similar Products (0)

SGM7227YMS10G/TR Description

Short technical summary and product information.

The SGM7227YMS10G/TR from SG Micro Corp is a Double-Pole/Double-Throw (DPDT) analog switch. It is engineered for high-speed applications, supporting USB 2.0 at 480Mbps.



This switch operates efficiently within a supply voltage range of 1.8V to 4.3V. Key electrical characteristics include a typical on-resistance of 5Ω at 3.0V, a high off-isolation of -51dB at 250MHz, and low crosstalk of -26dB at 250MHz. It boasts a -3dB bandwidth of 500MHz and fast switching times, with tON typically 20ns and tOFF typically 18ns at 3.3V.



The SGM7227 features break-before-make switching and rail-to-rail input and output operation. It includes power-off and power-on protections, enhancing system reliability. The device is designed to withstand VBUS shorts to D+ or D- pins, whether powered on or off.



Available in a green MSOP-10 package, the SGM7227YMS10G/TR operates across an ambient temperature range of -40°C to +85°C. Its high performance makes it suitable for applications such as cellular phones, digital cameras, portable equipment, computer peripherals, and battery-powered systems.

SGM7227YMS10G/TR Quick Information

Product Type: DPDT Analog Switch
Canonical Name: SGM7227 DPDT Analog Switch
Subcategory: DPDT Analog Switch

SGM7227YMS10G/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SGM7227YMS10G/TR Features

  • High speed USB 2.0 (480Mbps) support.
  • Wide 1.8V to 4.3V supply voltage range.
  • 500MHz bandwidth for signal integrity.
  • Low 5Ω typical on-resistance.
  • Operates from -40°C to +85°C.

SGM7227YMS10G/TR Applications

  • Routes signals for USB 2.0.
  • Ideal for cellular phones.
  • Suitable for digital cameras.
  • Used in portable equipment.
  • Applicable to computer peripherals.

SGM7227YMS10G/TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

1.8V to 4.3V.

What is the on-resistance?

5Ω typical at 3.0V.

What is the -3dB bandwidth?

500MHz.

What is the switching time?

tON: 20ns typical, tOFF: 18ns typical at 3.3V.

What package is available?

MSOP-10, surface mount, tape and reel packaging.

What is the operating temperature range?

-40°C to +85°C.

Does it support USB 2.0?

Yes, it supports USB 2.0 high-speed data up to 480Mbps.
