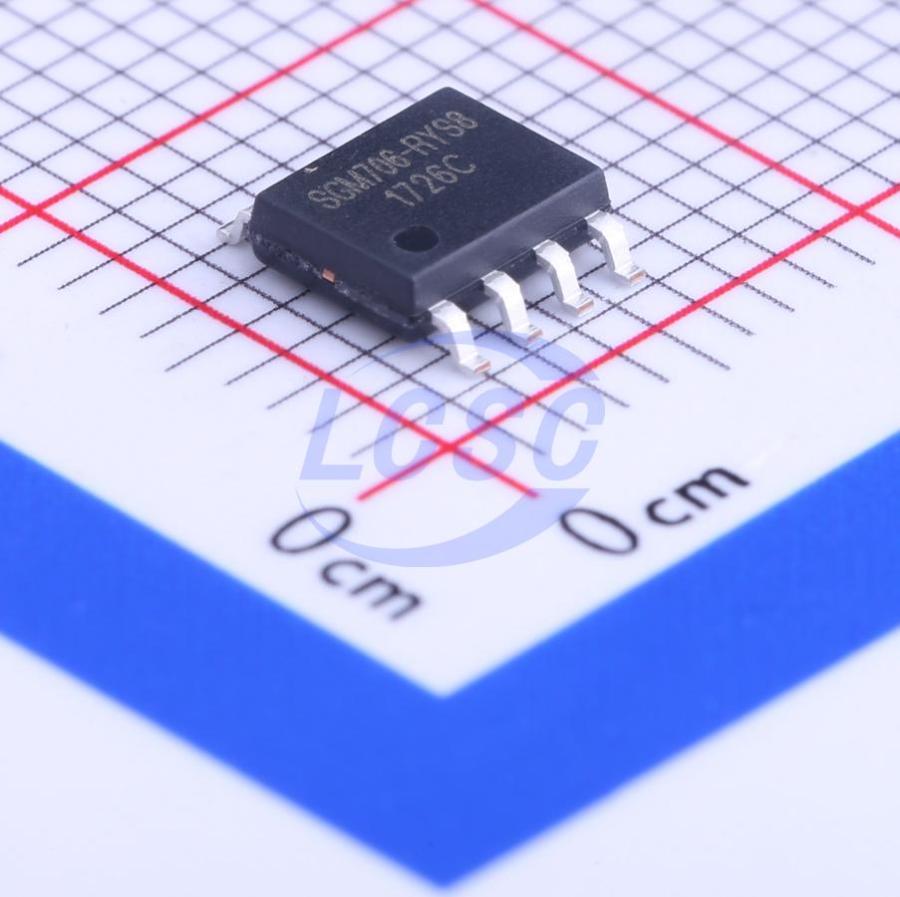

The SGM706-RYS8G/TR from SG Micro Corp is an integrated microprocessor supervisory device designed to enhance system stability and accuracy. It provides critical power monitoring functions, including reset capabilities during power-up, power-down, and brownout conditions. The device ensures a valid reset output even when VCC drops as low as 1V.
Key features include a precision supply-voltage monitor with various threshold options (2.63V for the -R variant), a guaranteed reset valid at VCC = 1V, and a reset pulse width of 200ms typical. It also incorporates a debounced TTL/CMOS-compatible manual-reset input and an independent watchdog monitoring circuit with a typical timeout of 1.6s. Additionally, a 1.25V threshold detector is available for power-fail or low-battery warning.
This supervisory circuit is available in a green SOIC-8 package, suitable for surface mount applications. It operates within an ambient temperature range of -40℃ to +85℃, making it suitable for a variety of demanding environments. The SGM706 is ideal for microprocessor systems, computers, automotive equipment, controllers, and intelligent instruments requiring critical μP power monitoring.
SOIC-8 surface mount package.
-40°C to +85°C.
2.63V.
200ms typical.
1.6s typical.
Yes, it features a debounced TTL/CMOS-compatible manual reset input.
1.25V.
