| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,475 pcs
|
17475 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
9,388 pcs
|
9388 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature Range | |
| Quiescent Current | |
| SVHC Present | |
| Tape & Reel |

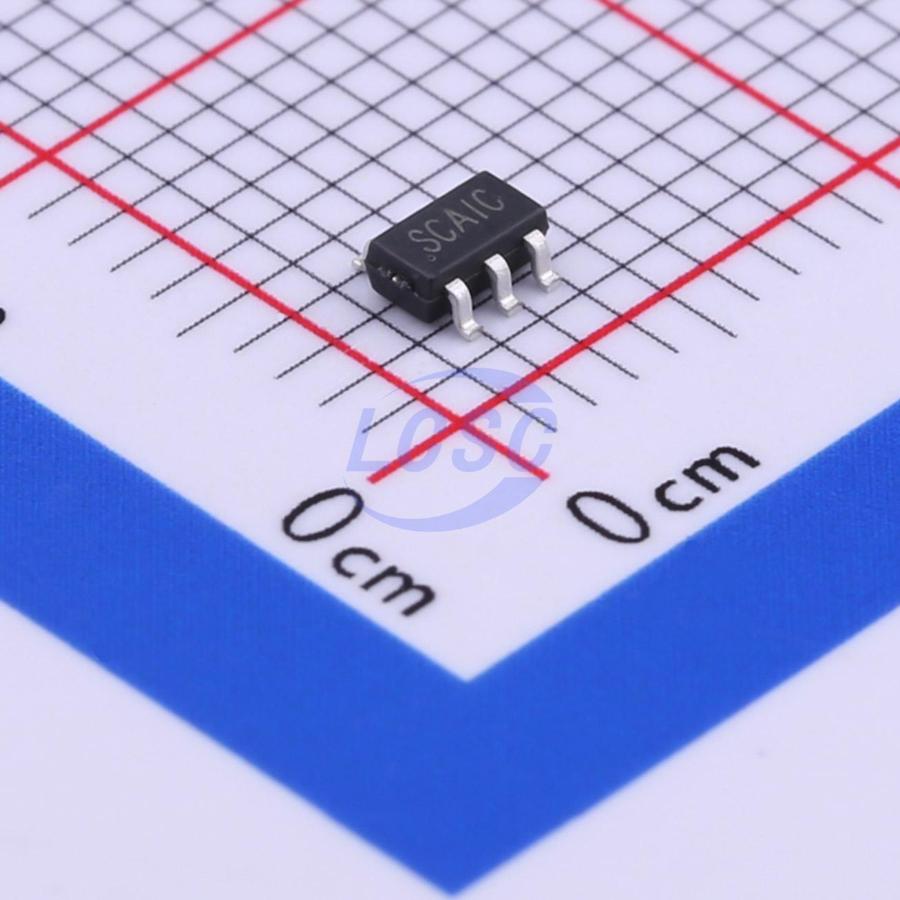

The SGM6603-5.0YN6G/TR from SG Micro Corp is a constant frequency, current mode, synchronous boost switching regulator designed for efficient power conversion. It accepts an input voltage range from 0.9V to 5.5V and provides a fixed 5.0V output voltage. This device achieves up to 90% efficiency, with improved performance at light loads due to its power-save mode.
Integrated power MOSFETs and internal compensation simplify the design, allowing for a compact solution. The SGM6603 features a low quiescent current of 30µA typical and a shutdown current of 1µA maximum. It also includes over-temperature protection and provides true output disconnection during shutdown.
The SGM6603-5.0YN6G/TR is available in a Green SOT-23-6 package, suitable for surface mount applications. It operates within an ambient temperature range of -40℃ to +85℃. This boost converter is ideal for applications powered by single-cell Li-ion batteries, portable audio players, mobile phones, and personal medical devices.
0.9V to 5.5V.
Fixed 5.0V.
Up to 90% at light loads.
30µA typical.
-40°C to +85°C.
SOT-23-6 surface-mount package.
1.1A typical.
