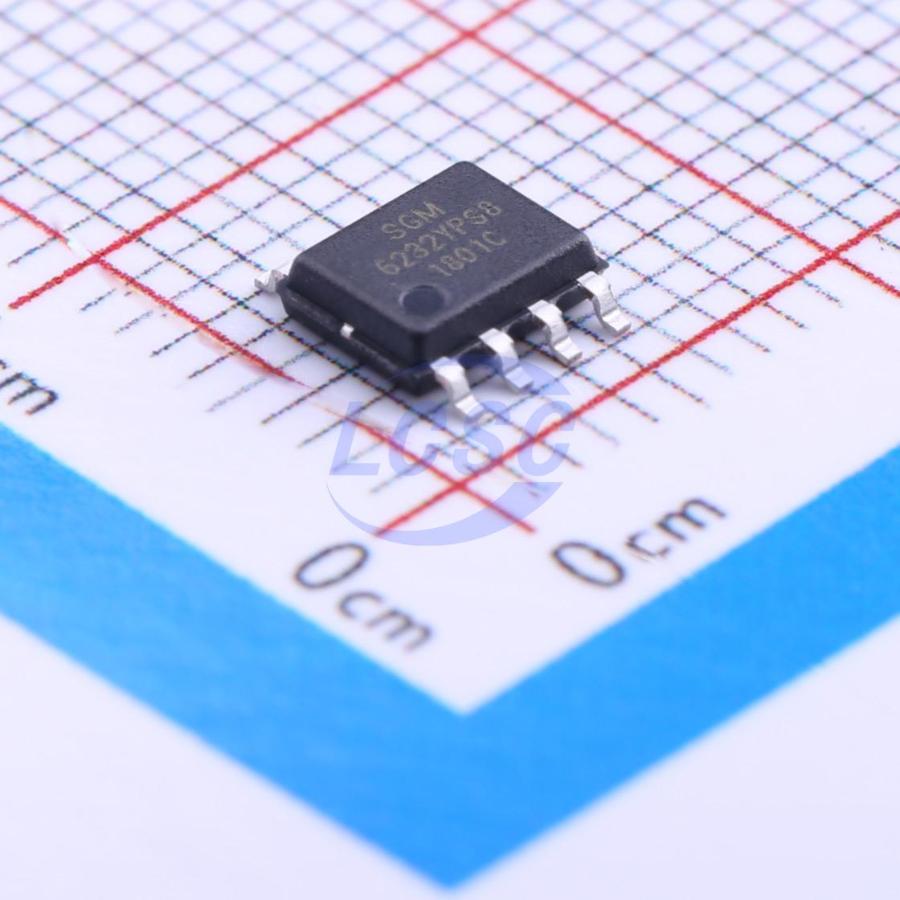

The SGM6232YPS8G/TR is a current-mode buck converter featuring an internal power MOSFET switch. It operates with a fixed switching frequency of 1.4MHz and supports an adjustable output voltage range from 0.8V to 28V. This device is capable of delivering up to 2A of output load current.
Key electrical specifications include a wide input voltage range of 4.5V to 38V and a peak efficiency of 91%. The shutdown supply current is a low 18µA (MAX). Protection features include cycle-by-cycle current limit and thermal shutdown.
The SGM6232YPS8G/TR is available in a Green SOIC-8 (Exposed Pad) package. It is designed to minimize external component count for a complete 2A buck DC/DC converter solution. The operating temperature range is -40°C to +85°C.
Applications for this buck converter include battery chargers, flat panel TVs, set-top boxes, cigarette lighter powered devices, and pre-regulators.
The input voltage range is 4.5V to 38V.
The output voltage can be adjusted from 0.8V to 28V.
The device can provide up to 2A of output current.
The switching frequency is fixed at 1.4MHz.
The peak efficiency is 91%.
The operating temperature range is -40°C to +85°C.
It is available in a SOIC-8 (Exposed Pad) package.
