| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,079 pcs
|
1079 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Current | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

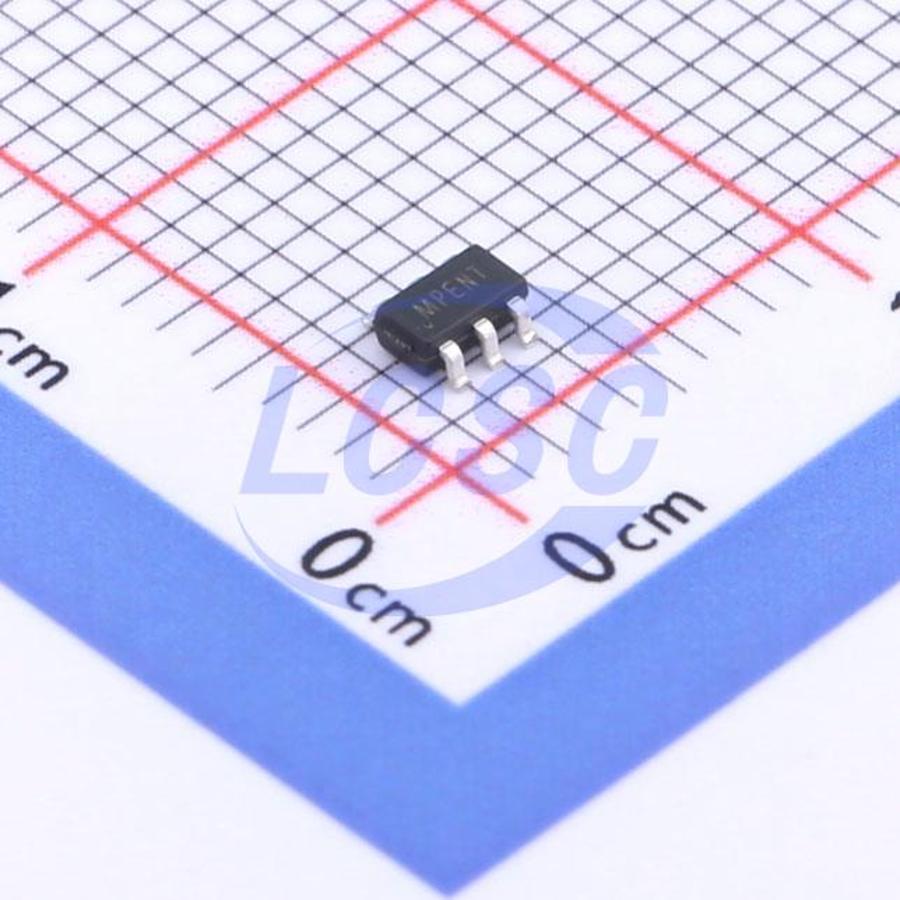

The SGM61410XN6G/TR is a high-frequency synchronous buck converter manufactured by SG Micro Corp. It features integrated switches and can deliver up to 600mA to the output.
This converter operates with a wide input voltage range of 5V to 42V, making it suitable for various industrial and automotive applications. It boasts a low quiescent current of 14μA (TYP) and an ultra-low shutdown current of 0.6μA (TYP), ideal for battery-powered devices. The SGM61410 achieves high efficiency, up to 95% at 12V/400mA, by scaling down switching frequency at light loads.
Key features include internal compensation, monotonic soft-start, and peak-current mode control for fast loop response. The 1.2MHz switching frequency helps mitigate EMI noise issues. Protection features include current limiting, short-circuit protection, thermal shutdown with auto-recovery, and output over-voltage protection. Frequency fold-back prevents inductor current runaway during startup.
The SGM61410XN6G/TR is supplied in a Green SOT-23-6 package and operates within a temperature range of -40℃ to +125℃. Its adjustable output voltage can be set from 0.8V to 24V.
The operating input voltage range is 5V to 42V.
It comes in a SOT-23-6 surface-mount package.
The operating temperature range is -40°C to +125°C.
The maximum output current is 600mA.
The switching frequency is 1.2MHz.
The typical quiescent current is 14μA.
The output voltage is adjustable from 0.8V to 24V.
