| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,905 pcs
|
2905 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,874 pcs
|
1874 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Quiescent Current | |
| Tape & Reel |

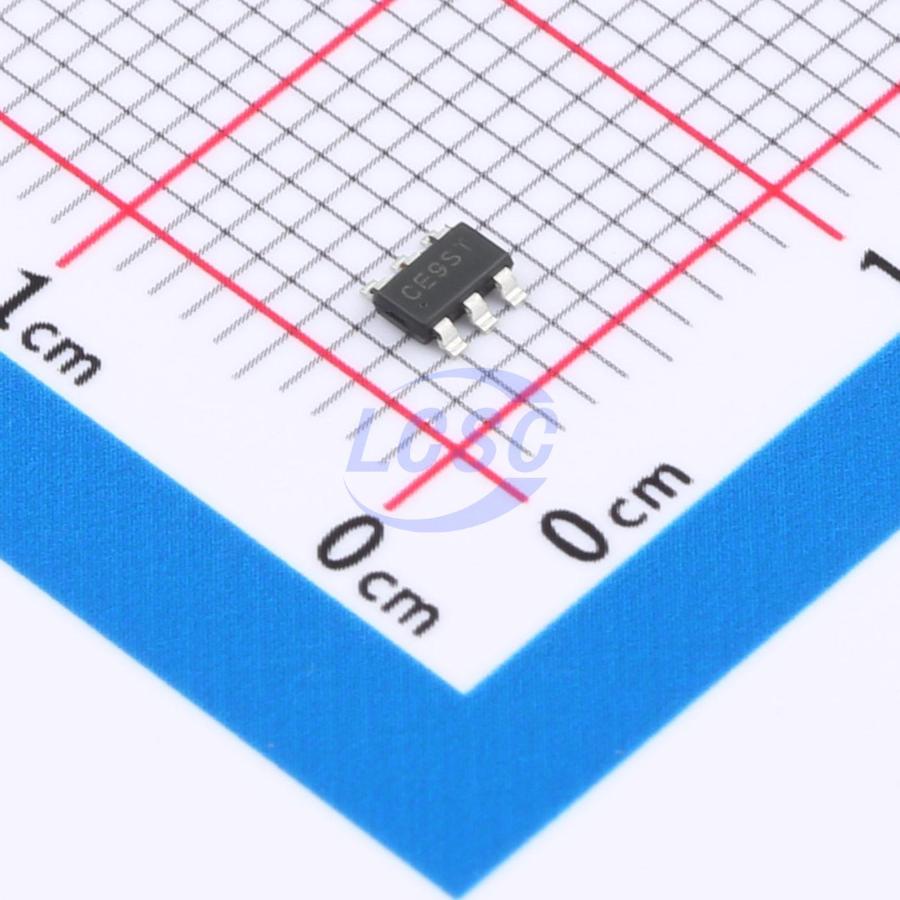

The SGM61230XTN6G/TR is a synchronous buck converter manufactured by SG Micro Corp. It is designed for a wide input voltage range of 4.5V to 28V and can deliver up to 3A of continuous output current. This device integrates power switches and peak current mode control compensation into a compact 6-pin TSOT-23-6 package.
Key electrical features include a fixed 410kHz switching frequency, a typical 5ms internal soft-start time to minimize inrush current, and low quiescent and shutdown currents. The converter incorporates cycle-by-cycle peak current limit, output over-voltage protection, and thermal shutdown with auto-recovery. It also offers adjustable input under-voltage lockout.
This buck converter is suitable for various applications including 12V distributed power supply buses, industrial and consumer electronics, white goods, audio equipment, set-top boxes, digital televisions, and printers. Its integrated design and protection features make it an easy-to-use solution for power management needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 28V.
The SGM61230XTN6G/TR can deliver up to 3A of continuous output current.
The device has a fixed switching frequency of 410kHz.
The operating temperature range is -40°C to +125°C.
It is available in a TSOT-23-6 package.
Yes, it is RoHS3 Compliant.
The MSL is Level 1.
