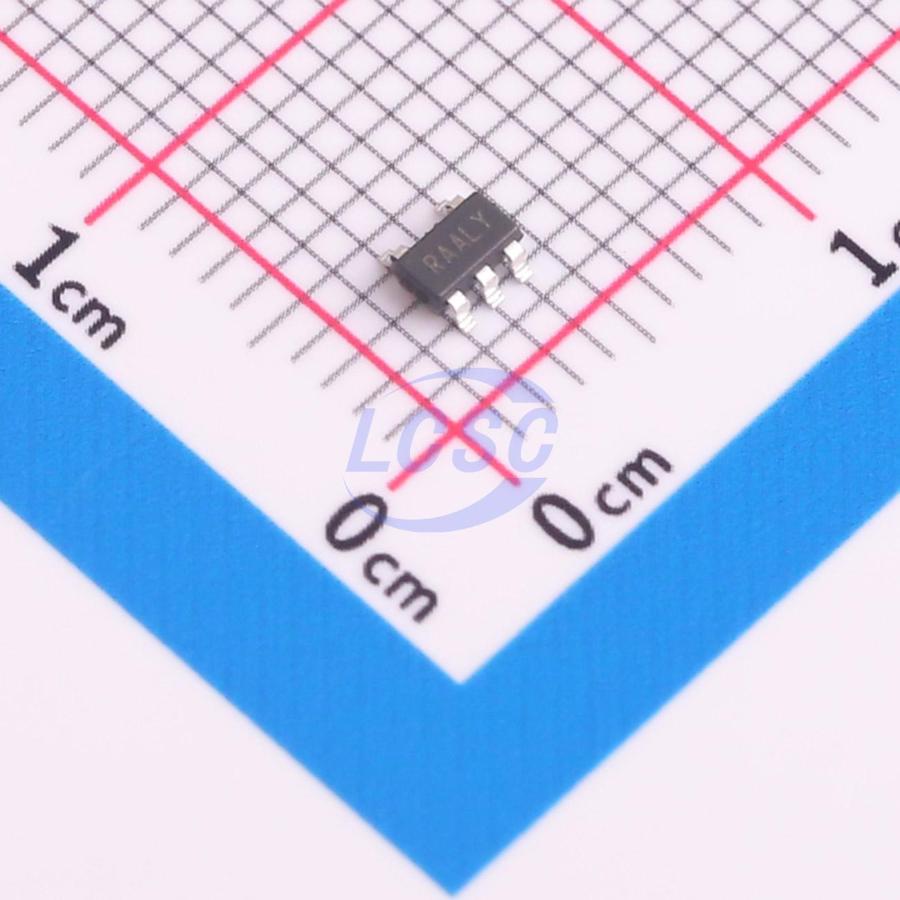

The SGM61020XN5G/TR is a synchronous buck DC/DC converter from SG Micro Corp designed for high efficiency and a 2A output current capability. It operates with an input voltage range of 2.5V to 5.5V and offers an adjustable output voltage from 0.6V up to the input voltage level, configurable via an external resistor divider.
This converter utilizes adaptive off-time peak current control, achieving efficiencies up to 95% in moderate load ranges. For moderate to heavy loads, it operates in a quasi-fixed 1.5MHz PWM mode. At light loads, it switches to a power-save mode (PSM) with a low quiescent current of typically 42μA, making it suitable for battery-powered applications. The device also features 100% duty cycle capability for low dropout operation.
Integrated protections include over-current, thermal shutdown, and input under-voltage lockout (UVLO). The SGM61020 is available in compact SOT-23-5 and SOT-563-6 packages, suitable for space-constrained designs. The SGM61020P variant includes a power good output.
Applications for this converter include battery-powered devices, point-of-load processor power supplies, and power supplies for hard disk drives (HDD) and solid-state drives (SSD).
2.5V to 5.5V.
Adjustable from 0.6V to VIN via external resistor divider.
2A.
1.5MHz.
-40°C to +125°C.
SOT-23-5 and SOT-563-6.
Yes, it is lead-free and halogen-free.
