| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Operating Temperature Range | |
| Package / Case | |
| SVHC Present | |
| Tape & Reel |

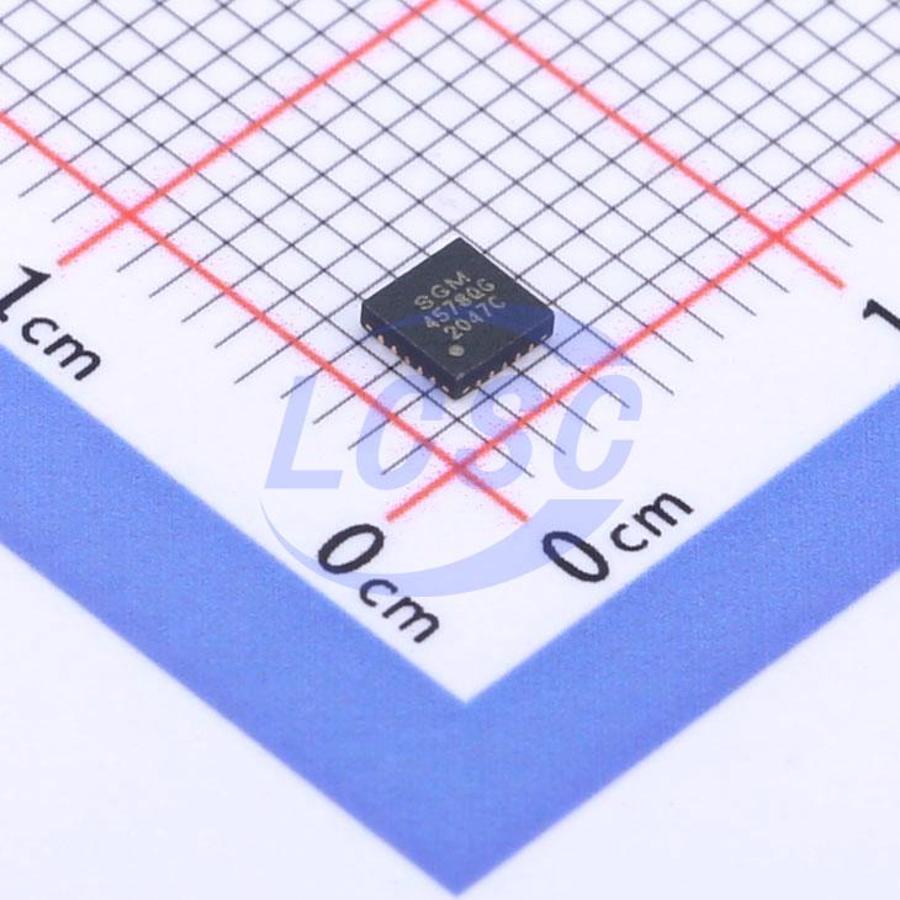

The SGM4578YTQG20G/TR is an 8-bit, non-inverting, bidirectional voltage-level translator manufactured by SG Micro Corp. It features two independent configurable power-supply lines, VCCA and VCCB, allowing translation between different voltage nodes such as 1.8V, 2.5V, 3.3V, and 5V.
The A ports support a supply voltage range of 1.65V to 5.5V, while the B ports support 2.3V to 5.5V. This device is designed for both open-drain and push-pull applications, offering data rates of up to 2Mbps for open-drain and 24Mbps for push-pull.
An output enable (OE) function is included, which can place all I/Os into a high-impedance state when low, reducing quiescent current. The SGM4578 operates within an ambient temperature range of -40°C to +85°C and is available in a TQFN-3x3-20L package, supplied on tape and reel in quantities of 4000.
Key applications include Universal Asynchronous Receiver/Transmitter (UART) interfaces, I2C/SMBus interfaces, and general-purpose I/O (GPIO) expansion.
The A ports support a supply voltage range of 1.65V to 5.5V, and the B ports support a range of 2.3V to 5.5V.
It supports data rates up to 24Mbps for push-pull applications and 2Mbps for open-drain applications.
The SGM4578YTQG20G/TR operates over an ambient temperature range of -40°C to +85°C.
This component is available in a TQFN-3x3-20L package.
It is supplied on tape and reel with a standard package quantity of 4000 pieces.
