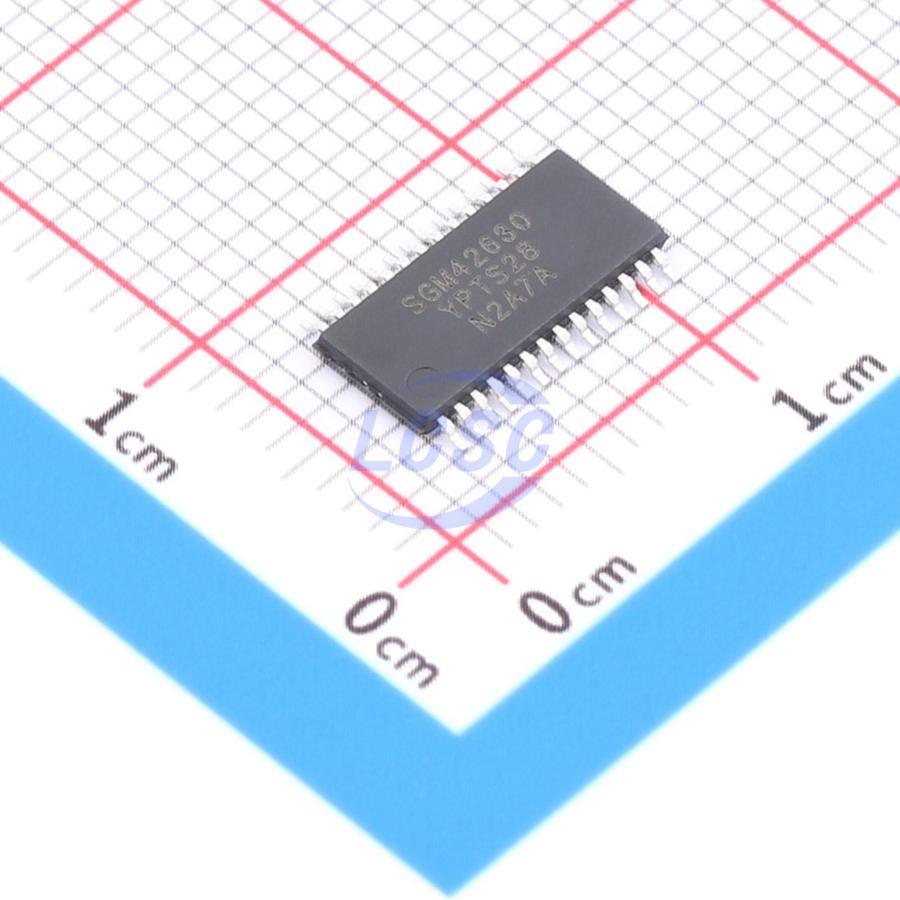

The SGM42630YPTS28G/TR is a bipolar stepper motor driver IC manufactured by SG Micro Corp. It is designed for automated positioning and movement control in various equipment.
This device integrates two H-bridges for motor windings and a microstepping indexer. It supports step sizes of full, half, quarter, and eighth steps, controlled via STEP and DIR inputs. The bridge currents are regulated by PWM, with a capability of up to 2.6A per winding. Key electrical features include a motor power supply voltage range of 8V to 35V and a low on-resistance of 0.29Ω at +25℃.
Protection features are built-in, including under-voltage lockout, short-circuit protection, over-current protection, and over-temperature shutdown. The device also offers programmable decay modes, blanking, and off-time for flexibility. It operates within a temperature range of -40℃ to +85℃.
The SGM42630YPTS28G/TR comes in a green TSSOP-28 (Exposed Pad) package, suitable for surface mounting. It is supplied on tape and reel with a standard package quantity of 4000 units.
The motor power supply voltage range is 8V to 35V.
The device can provide up to 2.6A of current for each winding.
The microstepping indexer supports full, 1/2, 1/4, and 1/8 step sizes.
The operating temperature range is -40℃ to +85℃.
It is available in a TSSOP-28 (Exposed Pad) package.
