Mfr Part #:

SGM41000-4.35YUDT6G/TR

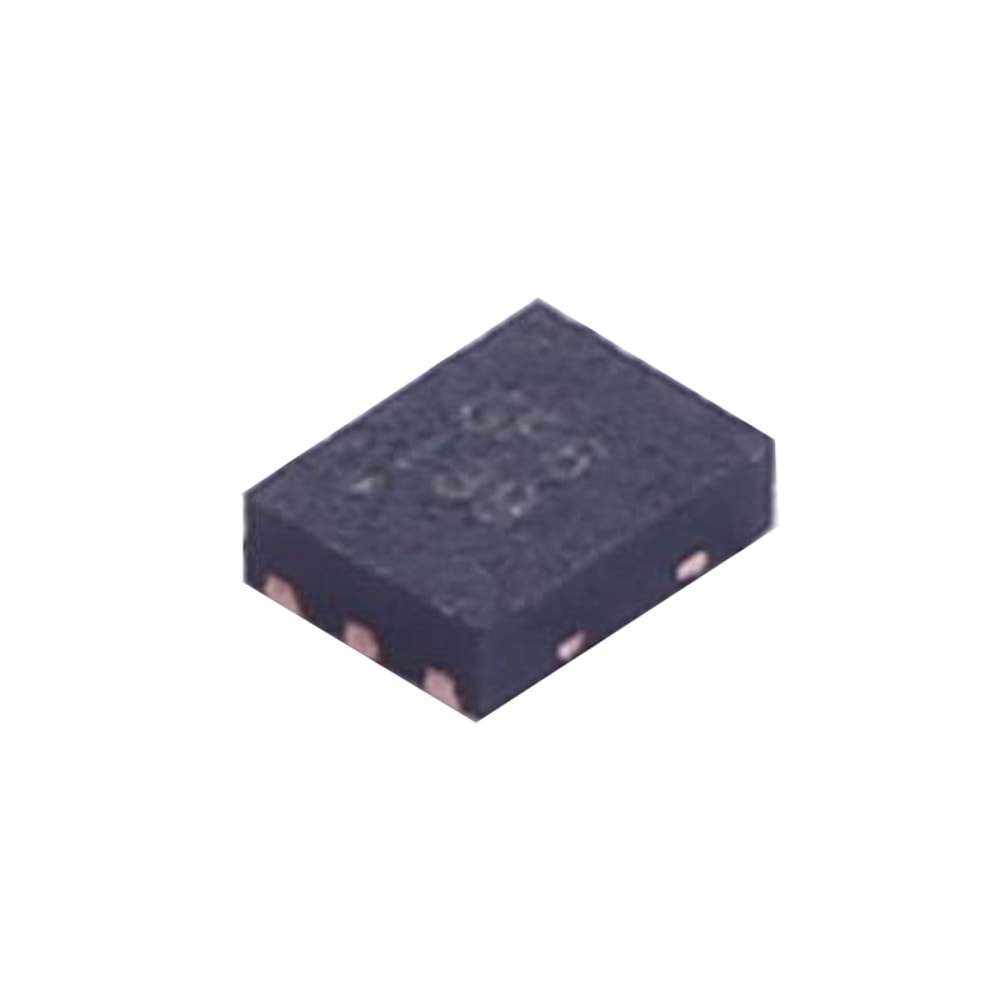

The SG Micro Corp SGM41000-4.35YUDT6G/TR is a Battery Management IC featuring a factory programmable OVP threshold and low pass resistance. It operates within a wide temperature range.

✓ Total Stock: 48,225 pcs

SGM41000-4.35YUDT6G/TR Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	48,175 pcs On Request	48175 pcs	On Request	1	On Request	On Request	19+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	19+	On Request	On Request

SGM41000-4.35YUDT6G/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	SG Micro Corp
Junction Temperature	+150°C
Lead Style	No Lead (Exposed Pad)
Mounting Type	Surface Mount
Package / Case	UTDFN-1.5x2-6L
SVHC Present	Not Present
Tape & Reel	Yes

View Similar Products (0)

SGM41000-4.35YUDT6G/TR Description

Short technical summary and product information.

The SG Micro Corp SGM41000-4.35YUDT6G/TR is an integrated circuit designed for battery management applications. It features a unique monolithic design for small cells and offers an ultra-compact solution.

Key electrical specifications include a pass resistance of 95mΩ and a factory programmable OVP threshold ranging from 4.15V to 4.45V in 50mV steps. The device supports a supply voltage range of 0V to 8V and a battery voltage range of 2.6V to 4.5V. Recommended operating conditions include a charging current of approximately 250mA and a discharging current of approximately 350mA.

Environmental specifications indicate an operating temperature range of -40°C to +85°C. Thermal characteristics include a maximum junction temperature of +150°C and a lead temperature (soldering 10 sec) of +260°C. ESD susceptibility is rated at 2000V for HBM, 200V for MM, and 1000V for CDM.

The component is available in a UTDFN-1.5x2-6L package, suitable for surface mounting.

SGM41000-4.35YUDT6G/TR Quick Information

Product Type: Battery Management IC

Series: SGM41000

Canonical Name: SG Micro Corp SGM41000-4.35YUDT6G/TR Battery Management IC

Subcategory: Battery Management

SGM41000-4.35YUDT6G/TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

SGM41000-4.35YUDT6G/TR Features

Ultra-compact monolithic design for small cells.
Low 95mΩ pass resistance.
Factory programmable OVP threshold (4.15V-4.45V).
Wide operating temperature range (-40°C to +85°C).
UTDFN-1.5x2-6L package for surface mounting.

SGM41000-4.35YUDT6G/TR Applications

Suitable for battery-powered devices.
Ideal for compact electronic systems.
Used in power management circuits.
Supports charging and discharging functions.

SGM41000-4.35YUDT6G/TR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the supply voltage range of the SGM41000-4.35YUDT6G/TR?

0V to 8V.

What is the operating temperature range?

-40°C to +85°C.

What package is the SGM41000-4.35YUDT6G/TR available in?

UTDFN-1.5x2-6L.

What is the typical charging current?

~250mA.

What is the typical discharging current?

~350mA.

What is the over-voltage protection threshold range?

4.15V to 4.45V, programmable in 50mV steps.

What are the ESD susceptibility ratings?

HBM: 2000V; MM: 200V; CDM: 1000V.
