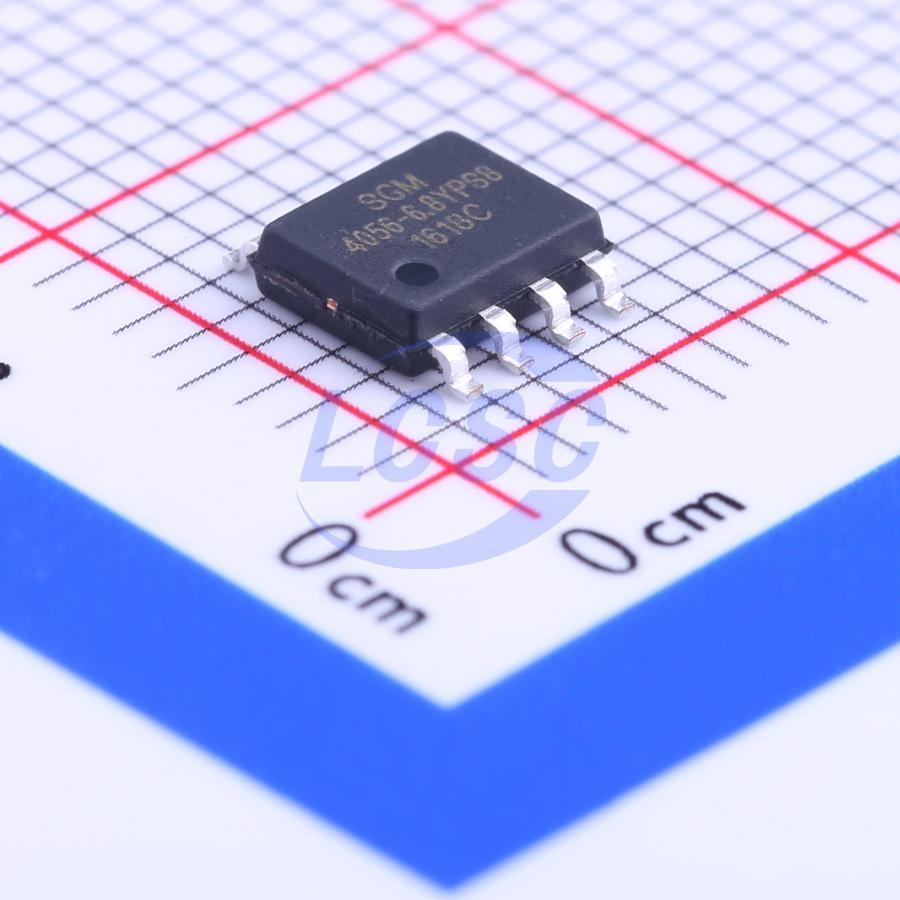

SGM4056-6.8YPS8G/TR The SGM4056-6.8YPS8G/TR from SG Micro Corp is a low-cost, high input voltage battery charger IC designed for single-cell Li-Ion or Li-polymer batteries. It features CC/CV charge profile and over-voltage protection.
Mfr Part #:

SGM4056-6.8YPS8G/TR

Available from 3 distributors
Mfr Name: SG Micro Corp
SG Micro Corp
The SGM4056-6.8YPS8G/TR from SG Micro Corp is a low-cost, high input voltage battery charger IC designed for single-cell Li-Ion or Li-polymer batteries. It features CC/CV charge profile and over-voltage protection.
✓ Total Stock: 20,476 pcs
$ Price Range: $0.27

SGM4056-6.8YPS8G/TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
13,846 pcs
On Request
13846 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,912 pcs
On Request
4912 pcs On Request 1 On Request On Request 17+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,718 pcs
On Request
1718 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SGM4056-6.8YPS8G/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Halogen Free
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
View Similar Products (0)

SGM4056-6.8YPS8G/TR Description

Short technical summary and product information.

The SGM4056-6.8YPS8G/TR is a linear battery charger IC from SG Micro Corp, designed for single-cell Li-Ion and Li-polymer batteries. It integrates high input voltage capability and a CC/CV charge profile essential for Li-Ion battery charging.



Key electrical features include an input over-voltage protection (OVP) threshold typically at 6.8V, a trickle charge threshold of 2.55V, and the ability to accept a power input voltage up to 26.5V. When the input voltage exceeds the OVP threshold, the charger is disabled. The device also offers a charging status indication feature and a low leakage current of less than 1μA when the charger is disabled or the input is floating.



This component is rated for an operating temperature range of -40°C to +85°C. It is available in a SOIC-8 (Exposed Pad) package, suitable for surface mount applications. The SGM4056 is designed for applications such as handheld devices, smartphones, portable internet devices, and standalone chargers, offering a low-component-count and cost-effective solution.

SGM4056-6.8YPS8G/TR Quick Information

Product Type: Battery Charger IC
Canonical Name: SGM4056 High Input Voltage Charger
Subcategory: Linear Chargers

SGM4056-6.8YPS8G/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SGM4056-6.8YPS8G/TR Estimated Pricing

Qty Low High
1+ $0.27 $0.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

SGM4056-6.8YPS8G/TR Features

  • High input voltage capability for Li-Ion batteries.
  • Integrated over-voltage protection (OVP) at 6.8V.
  • Trickle charge threshold set at 2.55V.
  • Low leakage current when disabled or floating.
  • Operates across a wide temperature range.

SGM4056-6.8YPS8G/TR Applications

  • Suitable for handheld devices.
  • Ideal for smartphone charging circuits.
  • Used in portable internet accessories.
  • Applicable for standalone chargers.

SGM4056-6.8YPS8G/TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input over-voltage protection threshold for the SGM4056?

The input over-voltage protection threshold is typically 6.8V for the SGM4056-6.8 variants.

What is the trickle charge threshold for the SGM4056?

The trickle charge threshold is 2.55V.

What is the maximum power input voltage for the SGM4056?

The SGM4056 accepts a maximum power input voltage of 26.5V.

What is the leakage current of the SGM4056 when the charger is disabled?

When the charger is disabled or the input is floating, the leakage current from the battery is a maximum of 1μA.

What is the operating temperature range for the SGM4056?

The SGM4056 is rated for an operating temperature range of -40°C to +85°C.

What package is the SGM4056-6.8YPS8G/TR available in?

The SGM4056-6.8YPS8G/TR is available in a SOIC-8 (Exposed Pad) package.
