| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,899 pcs
|
8899 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,124 pcs
|
1124 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Efficiency | |
| Industrial Grade | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel |

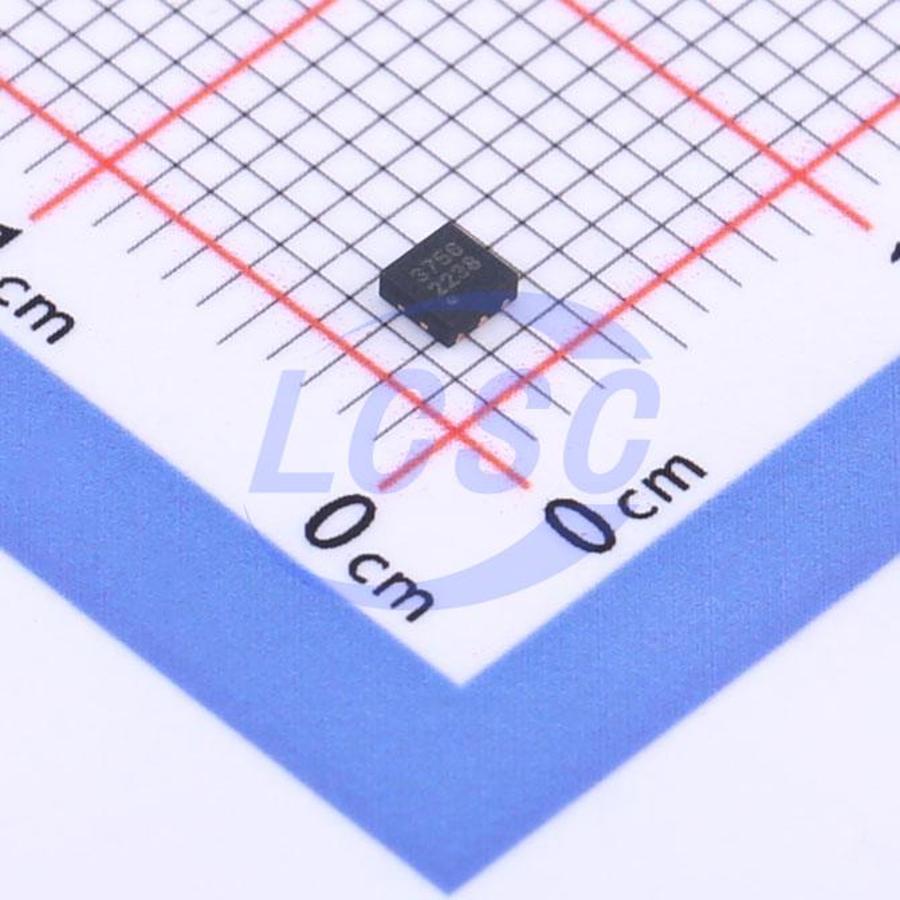

The SGM3756YTDI6G/TR is an asynchronous boost WLED driver from SG Micro Corp, designed for high efficiency and low EMI applications. It integrates a 40V, 1.5A internal FET and operates at a 1.2MHz switching frequency, making it suitable for driving single or multiple parallel LED strings.
Key electrical specifications include an input voltage range of 2.7V to 5.5V, a feedback voltage of 200mV (typical), and up to 90% efficiency. The device offers PWM dimming control for stable luminance adjustment and features 38V open LED protection for up to 10 LEDs in series. It also includes automatic soft-start, under-voltage lockout, and thermal shutdown protection.
The SGM3756YTDI6G/TR is available in a Green TDFN-2x2-6L package and operates within an ambient temperature range of -40℃ to +85℃. Its design incorporates ringing cancellation to reduce EMI noise and provides excellent line and load regulation, suitable for portable devices and small to medium-sized LCD display backlights.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
The switching frequency is 1.2MHz.
The typical feedback voltage is 200mV.
The operating temperature range is -40℃ to +85℃.
It is available in a TDFN-2x2-6L package.
Yes, it supports PWM dimming control.
