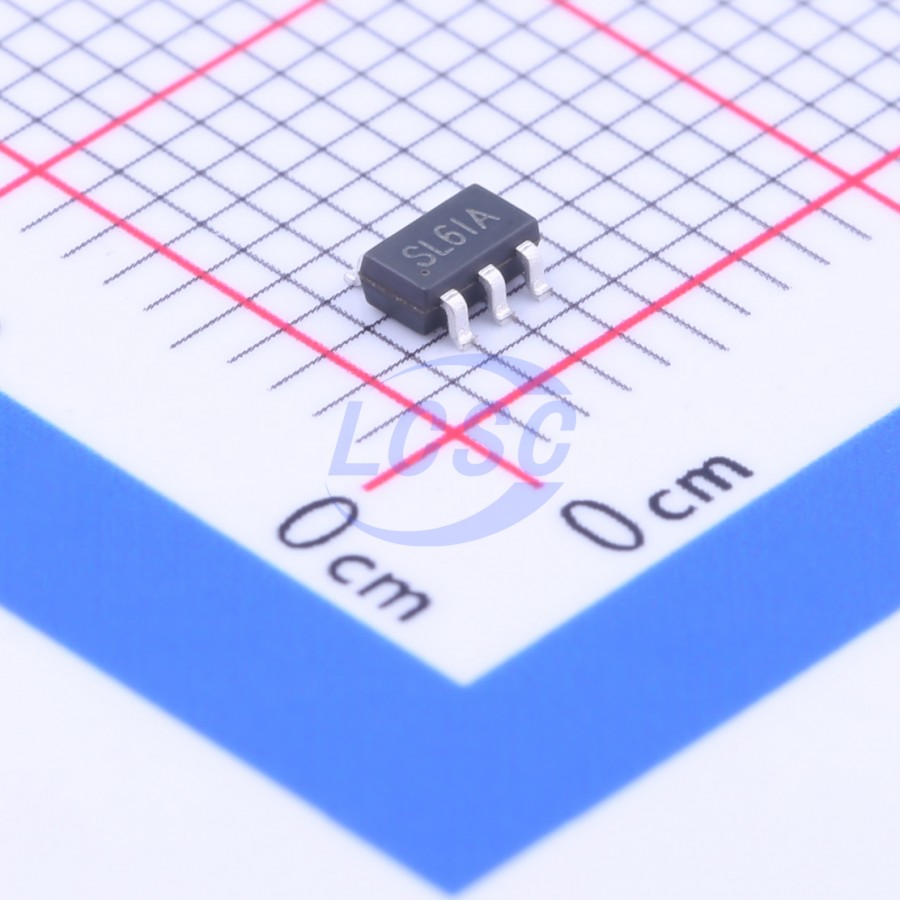

The SGM3204YN6G/TR is an unregulated charge pump voltage inverter manufactured by SG Micro Corp. Designed for battery-powered applications, it accepts an input voltage range of 1.4V to 5.5V and can provide up to 200mA of output current. The device features a typical conversion efficiency exceeding 80% and a low shutdown current of less than 1μA.
This charge pump inverter operates at a switching frequency of 950kHz and includes an integrated active Schottky diode for startup into load. It is suitable for applications requiring a negative voltage rail, such as LCD panel bias, bipolar amplifier supplies, and GaAs bias for RF power amplifiers. The SGM3204YN6G/TR is available in a compact SOT-23-6 package and operates within an ambient temperature range of -40℃ to +85℃.
It requires minimal external components, including one flying capacitor and two bypass capacitors, making it ideal for space-constrained battery-powered and board-level designs. The device is RoHS compliant and available on tape and reel for automated assembly.
The input voltage range is 1.4V to 5.5V.
The SGM3204YN6G/TR can provide up to 200mA of output current.
The typical quiescent current is 1.5mA.
It operates over an ambient temperature range of -40℃ to +85℃.
The SGM3204YN6G/TR is available in a SOT-23-6 package.
The status is RoHS3 Compliant.
The MSL is 1 Unlimited.
