| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,207 pcs
|
1207 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Quiescent Current | |
| Tape & Reel | |
| Voltage |

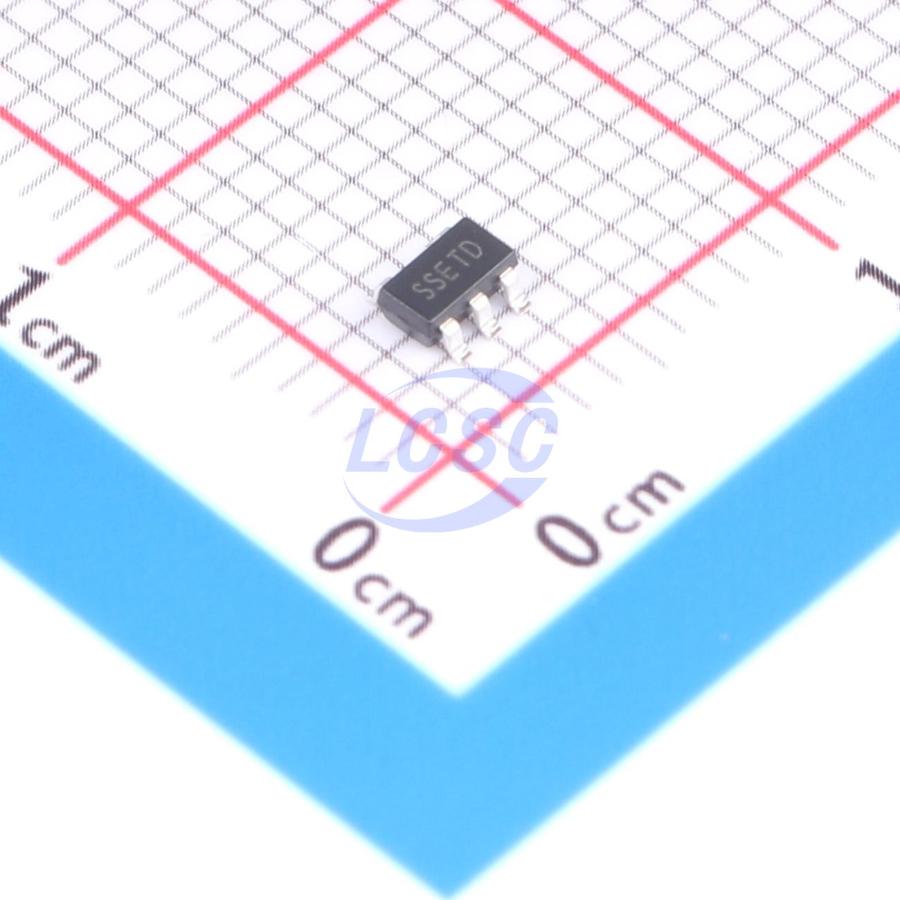

The SGM2588CYN5G/TR is a single-channel power distribution switch manufactured by SG Micro Corp. It is designed to operate within a wide supply voltage range of 2.5V to 5.5V and is controlled via an EN pin, making it suitable for USB power distribution applications.
This device integrates a 100mOhm N-MOSFET, offering low on-resistance. It includes several protection features such as soft-start, current limit, and thermal shutdown. The thermal shutdown mechanism activates if the die temperature exceeds +150°C, asserting the nFAULT output and turning off the output MOSFET until the temperature drops to +130°C. The nFAULT pin asserts low during fault conditions after a 13ms blanking time.
With a low quiescent current of 23μA (typical) and a shutdown current of 0.1μA (typical), the SGM2588CYN5G/TR is well-suited for space-limited, battery-powered applications. It is available in a Green SOT-23-5 package and rated for an operating temperature range of -40°C to +85°C.
Applications include digital TV set-top boxes, motherboards, and USB power switches for devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5V to 5.5V.
The typical on-resistance is 100mOhm.
It includes soft-start, current limit, and thermal shutdown.
The operating temperature range is -40°C to +85°C.
It is available in a SOT-23-5 package.
The status is RoHS3 Compliant.
The MSL is 1 Unlimited.
