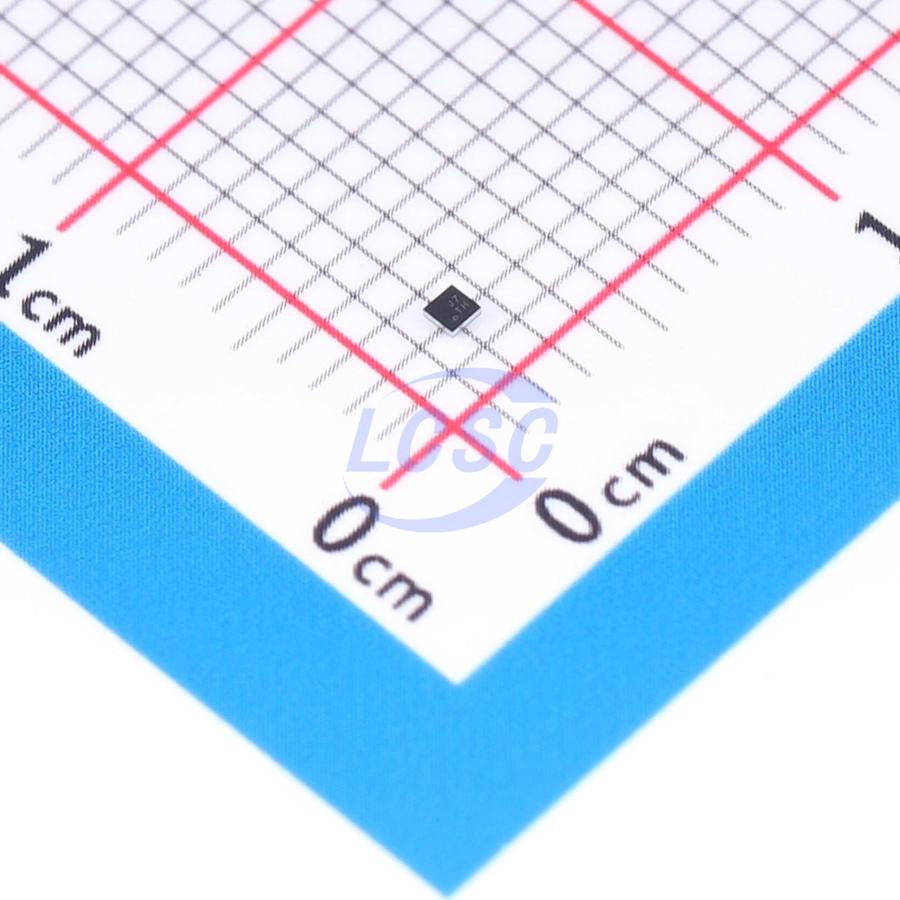

The SGM2578AADYG/TR by SG Micro Corp is a single load switch designed for applications requiring efficient power management. It operates across a wide input voltage range of 1V to 5.5V and can deliver up to 2A of continuous current.
Key electrical characteristics include a low on-resistance (RON) of 30mΩ at 3.3V, and a low shutdown current of 90nA typical. The device incorporates reverse current protection when disabled and offers controlled turn-on with specific rise times (200μs for SGM2578AAD, 5000μs for SGM2578ABD) to manage inrush current.
This load switch is suitable for space-limited, battery-powered devices. It is available in a compact WLCSP-0.9x0.9-4B-A package, making it ideal for mobile phones, ultrabooks, tablets, digital cameras, and solid-state drives. The device also features a quick output discharge function in the disable state.
Applications include mobile phones, ultrabooks, tablet PCs, digital cameras, wearable technology, and solid-state drives.
1V to 5.5V.
WLCSP-0.9x0.9-4B-A.
-40°C to +85°C.
29mΩ.
2A.
90nA.
200μs.
