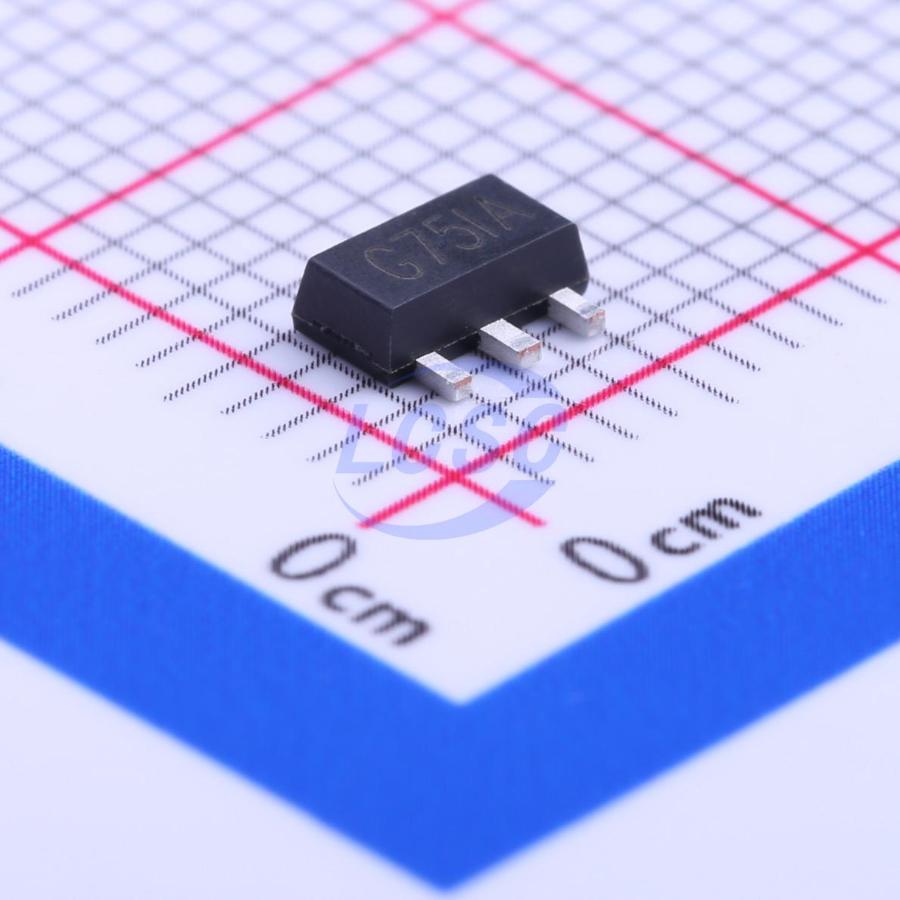

SGM2203-3.3YK3LG/TR The SG Micro Corp SGM2203-3.3YK3LG/TR is a high voltage, low power consumption linear regulator. It provides a fixed 3.3V output voltage and can supply up to 150mA of current.
Mfr Part #:

SGM2203-3.3YK3LG/TR

Available from 1 distributors
Mfr Name: SG Micro Corp
SG Micro Corp
The SG Micro Corp SGM2203-3.3YK3LG/TR is a high voltage, low power consumption linear regulator. It provides a fixed 3.3V output voltage and can supply up to 150mA of current.
✓ Total Stock: 6,000 pcs

SGM2203-3.3YK3LG/TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SGM2203-3.3YK3LG/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Input Voltage
Mounting Type
Operating Temperature
Output Current
Output Voltage
Package / Case
Quiescent Current
SVHC Present
Tape & Reel
View Similar Products (0)

SGM2203-3.3YK3LG/TR Description

Short technical summary and product information.

The SGM2203-3.3YK3LG/TR from SG Micro Corp is a linear voltage regulator designed for high voltage applications. It features a fixed output voltage of 3.3V and is capable of delivering up to 150mA of output current. The device operates with an input voltage of up to 36V, making it suitable for a variety of power supply designs.



Key electrical characteristics include an output voltage accuracy of ±3% at +25℃ and a low quiescent current of 4.2μA typical. The regulator also incorporates current limiting and thermal shutdown protection for enhanced reliability. It operates within a temperature range of -40℃ to +85℃.



This specific part, SGM2203-3.3YK3LG/TR, is supplied in an SOT-89-3 (L-Type) package, designed for surface mounting. It is provided on tape and reel.



Applications for this regulator include palmtops, high-power boost applications, power sources for battery-powered equipment, and home electric/electronic appliances.

SGM2203-3.3YK3LG/TR Quick Information

Product Type: Linear Voltage Regulator
Series: SGM2203
Canonical Name: SGM2203-3.3YK3LG/TR
Subcategory: Low-dropout Regulators (LDO)

SGM2203-3.3YK3LG/TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SGM2203-3.3YK3LG/TR Features

  • High input voltage up to 36V.
  • Fixed 3.3V output voltage.
  • 150mA maximum output current.
  • Low quiescent current of 4.2μA.
  • Operates from -40℃ to +85℃.

SGM2203-3.3YK3LG/TR Applications

  • Suitable for palmtops.
  • Used in high-power boost applications.
  • Power source for battery devices.
  • Applicable to home appliances.

SGM2203-3.3YK3LG/TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SGM2203-3.3YK3LG/TR?

The fixed output voltage is 3.3V.

What is the maximum output current?

150mA.

What is the quiescent current?

4.2µA typical.

What is the input voltage range?

Up to 36V.

What is the operating temperature range?

-40°C to +85°C.

What is the package type?

SOT-89-3 (L-Type).
