Mfr Part #:

SGM2036-3.3YUDH4G/TR

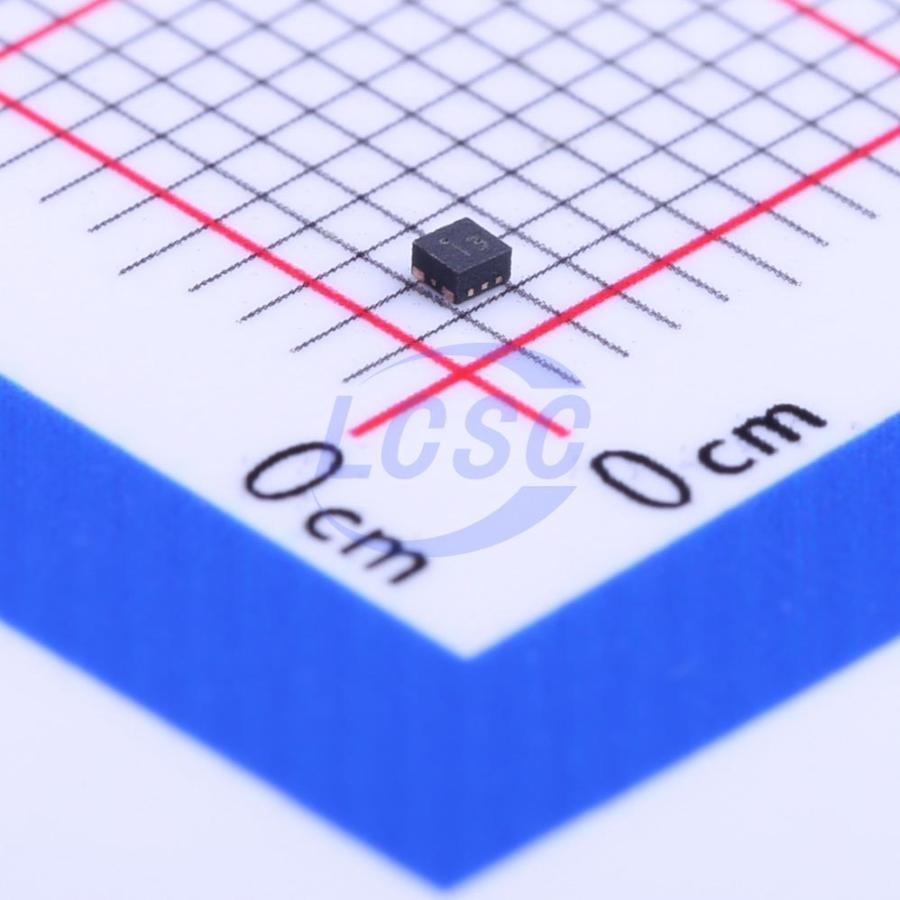

The SG Micro Corp SGM2036-3.3YUDH4G/TR is a low dropout linear voltage regulator. It provides up to 300mA output current with a low dropout voltage.

✓ Total Stock: 32,848 pcs

SGM2036-3.3YUDH4G/TR Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	23,862 pcs On Request	23862 pcs	On Request	1	On Request	On Request	1736+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	7,386 pcs On Request	7386 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,600 pcs On Request	1600 pcs	On Request	1	On Request	On Request	18+	On Request	On Request

SGM2036-3.3YUDH4G/TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	SG Micro Corp
Mounting Type	Surface Mount
Output Current	300mA
Package / Case	UTDFN-1x1-4L
Supply Current	20μA
Tape & Reel	Yes

View Similar Products (0)

SGM2036-3.3YUDH4G/TR Description

Short technical summary and product information.

The SGM2036-3.3YUDH4G/TR from SG Micro Corp is a low noise, low voltage, and low dropout linear regulator designed for efficient power management. It is capable of supplying a guaranteed 300mA output current with a typical dropout voltage of only 165mV at 300mA.

This regulator operates within an input voltage range of 1.6V to 5.5V. It features a fixed output voltage of 3.3V, with an output voltage accuracy of ±2.5% at +25℃. The device also includes features such as logic-controlled shutdown mode, short-circuit current limit, and thermal shutdown protection. Its low supply current of 20μA (typical) and shutdown current of 0.01μA (typical) make it suitable for low-power applications.

The SGM2036-3.3YUDH4G/TR is available in a compact UTDFN-1x1-4L package, suitable for surface mounting. It operates across a wide temperature range of -40℃ to +85℃, making it robust for various environmental conditions. The regulator also incorporates an automatic discharge function for quick VOUT discharge in the disabled state.

Applications for this device include modems, cellular telephones, PCMCIA cards, palmtop computers, and other portable electronics where efficient and stable voltage regulation is required.

SGM2036-3.3YUDH4G/TR Quick Information

Product Type: Linear Voltage Regulator

Series: SGM2036

Canonical Name: SGM2036 3.3V 300mA Low Dropout Linear Regulator

Subcategory: Low Dropout (LDO) Regulator

SGM2036-3.3YUDH4G/TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SGM2036-3.3YUDH4G/TR Features

300mA guaranteed output current.
Low dropout voltage of 165mV typical.
Wide 1.6V to 5.5V input voltage range.
Compact UTDFN-1x1-4L package.
Low supply current of 20μA typical.

SGM2036-3.3YUDH4G/TR Applications

Suitable for portable electronics.
Ideal for cellular telephones.
Used in modems and PCMCIA cards.
Applicable to palmtop computers.

SGM2036-3.3YUDH4G/TR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the SGM2036-3.3YUDH4G/TR?

The input voltage range is 1.6V to 5.5V.

What is the output voltage of this part?

The part number indicates a fixed output voltage of 3.3V.

What is the maximum output current?

The guaranteed output current is 300mA.

What is the dropout voltage at full load?

The typical dropout voltage is 165mV at 300mA load.

What is the quiescent current consumption?

The typical quiescent current is 20μA.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package is available for the SGM2036-3.3YUDH4G/TR?

It is available in a UTDFN-1x1-4L surface-mount package.
