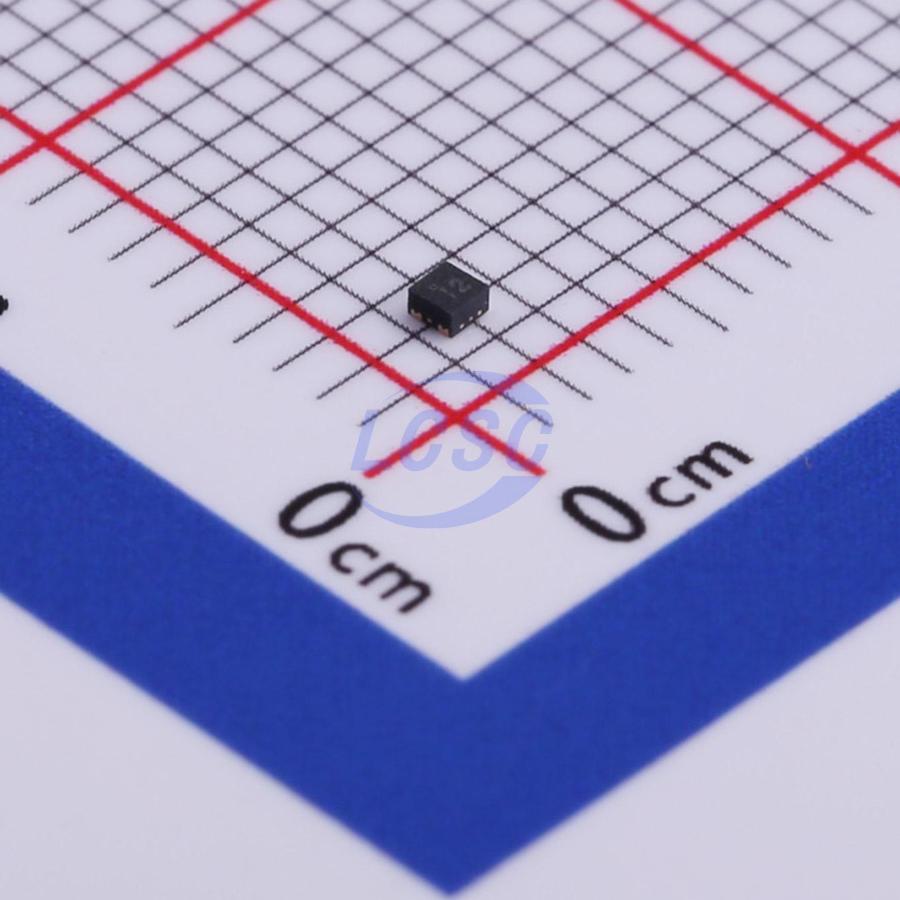

The SGM2036-3.0YUDH4G/TR from SG Micro Corp is a low noise, low voltage, and low dropout linear regulator designed for 300mA output current.
This regulator features a wide operating input voltage range of 1.6V to 5.5V and a fixed 3.0V output voltage. It offers a typical dropout voltage of 165mV at 300mA and an output voltage accuracy of ±2.5% at +25℃. The device consumes a low supply current of 20μA (typical) and a very low shutdown current of 0.01μA (typical).
Key features include logic-controlled shutdown mode, short-circuit current limit, and thermal shutdown protection. The SGM2036 also incorporates an automatic discharge function for quick VOUT discharge when disabled. It operates reliably within a temperature range of -40℃ to +85℃.
The SGM2036-3.0YUDH4G/TR is available in a compact UTDFN-1x1-4L package, suitable for surface mounting. This makes it ideal for space-constrained applications in portable electronics, modems, cellular telephones, and PCMCIA cards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SGM2036 is capable of supplying 300mA output current.
The operating input voltage range is from 1.6V to 5.5V.
This variant provides a fixed output voltage of 3.0V.
The typical dropout voltage is 165mV at 300mA output current.
The operating temperature range is -40℃ to +85℃.
The SGM2036 is available in the UTDFN-1x1-4L package.
