| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,011 pcs
|
4011 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
3,466 pcs
|
3466 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| SVHC Present | |
| Supply Current | |
| Tape & Reel |

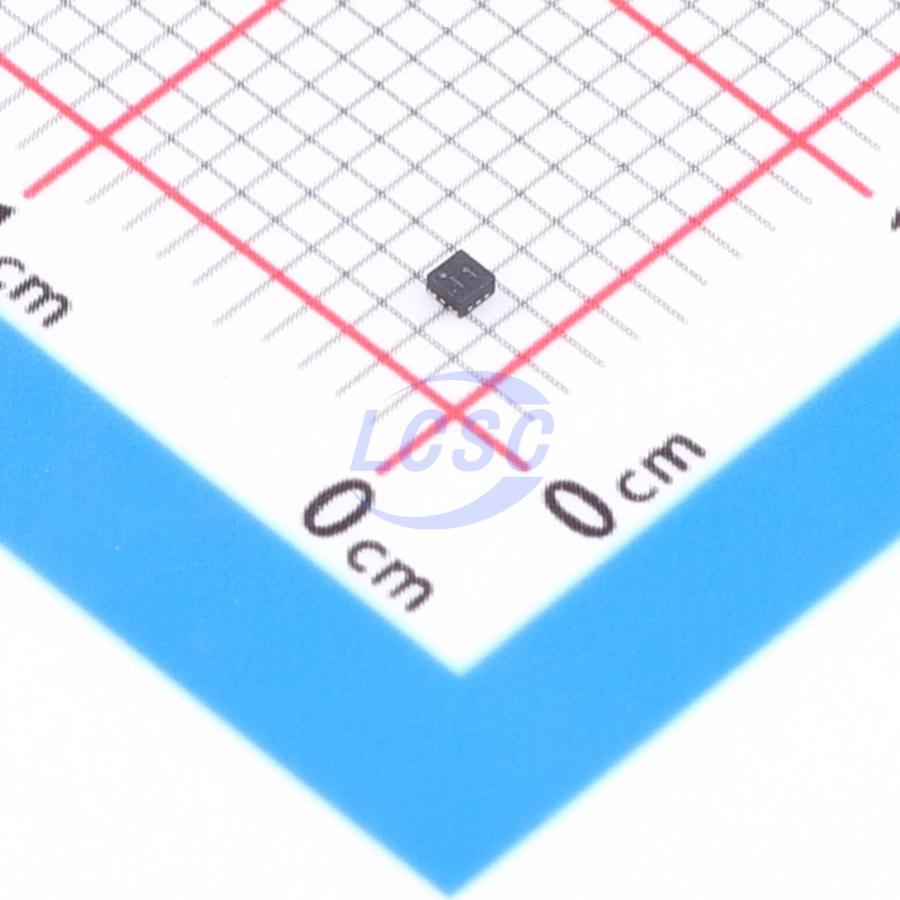

The SGM2036-2.8YUDH4G/TR is a low noise, low voltage, and low dropout linear regulator manufactured by SG Micro Corp. It is designed to supply up to 300mA of output current with a typical dropout voltage of 165mV. The device supports an input voltage range from 1.6V to 5.5V and offers adjustable output voltages from 0.8V to 5.0V.
Key electrical characteristics include a typical supply current of 20µA and a shutdown supply current of 0.01µA. The output voltage accuracy is ±2.5% at +25℃. The regulator also features short-circuit current limit and thermal shutdown protection for enhanced reliability.
This regulator is available in a compact UTDFN-1x1-4L package, suitable for space-constrained applications. It operates within an ambient temperature range of -40℃ to +85℃.
Applications for the SGM2036 series include modems, cellular telephones, PCMCIA cards, palmtop computers, and other portable electronic devices.
1.6V to 5.5V.
Adjustable from 0.8V to 5.0V.
300mA guaranteed.
165mV at 300mA load.
20µA typical.
-40°C to +85°C.
UTDFN-1x1-4L surface-mount package.
