| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,359 pcs
|
16359 pcs | On Request | 1 | On Request | On Request | 1941+ | On Request | On Request | |
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| SVHC Present | |
| Supply Current | |
| Tape & Reel |

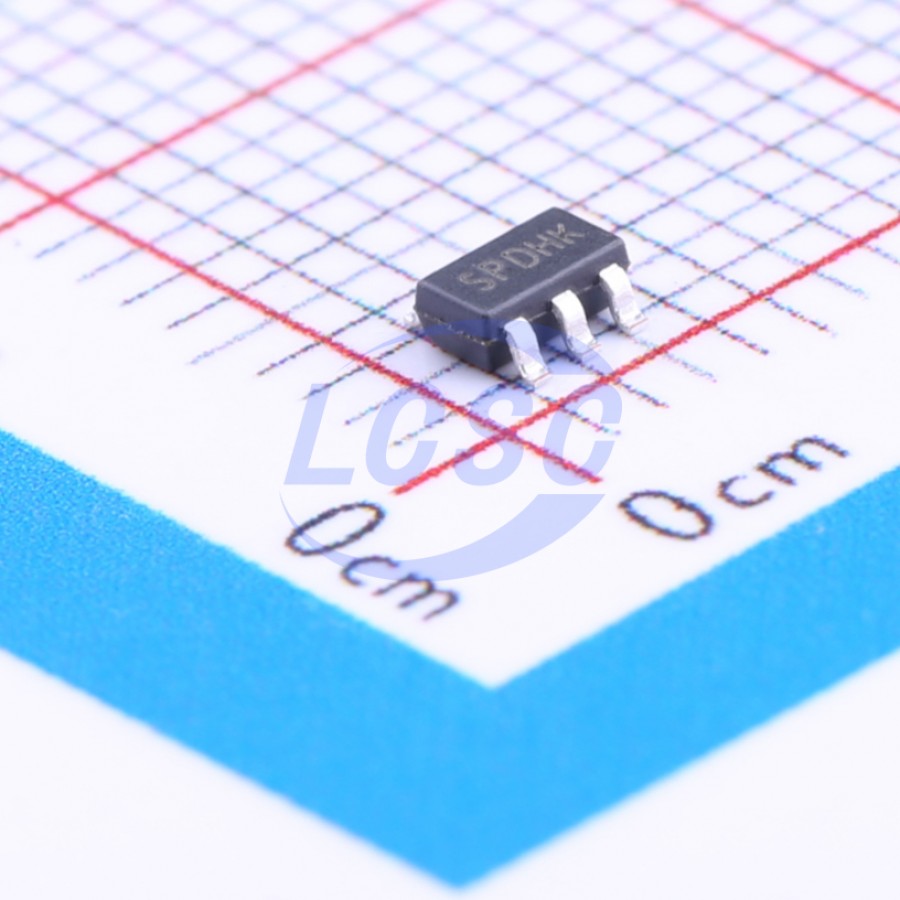

The SGM2036-2.8YN5G/TR is a linear voltage regulator designed for low-power applications. It operates with an input voltage range of 1.6V to 5.5V and can supply a guaranteed output current of 300mA. The device features a low dropout voltage of 165mV typical at 300mA, contributing to its efficiency.
Key electrical characteristics include a typical supply current of 20μA and a shutdown supply current of 0.01μA. The output voltage accuracy is ±2.5% at +25℃. The regulator is designed to operate within an ambient temperature range of -40℃ to +85℃.
This regulator is available in a compact UTDFN-1x1-4L surface-mount package, making it suitable for space-constrained designs. It also includes features such as short-circuit current limit and thermal shutdown protection for enhanced reliability. The SGM2036 series offers fixed output voltages from 0.8V to 5.0V, with this specific part being a 2.8V version.
Applications for the SGM2036 include modems, cellular telephones, PCMCIA cards, palmtop computers, and other portable electronics where low power consumption and stable voltage regulation are critical.
The input voltage range is 1.6V to 5.5V.
The fixed output voltage is 2.8V.
The guaranteed output current is 300mA.
The typical dropout voltage is 165mV at 300mA output.
The typical quiescent current is 20μA.
The operating temperature range is -40°C to +85°C.
It is available in a UTDFN-1x1-4L surface mount package.
