| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,357 pcs
|
1357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Output Current | |
| Package / Case | |
| SVHC Present | |
| Supply Current | |
| Tape & Reel |
The SGM2036-1.8YUDH4G/TR is a low noise, low voltage, and low dropout linear regulator manufactured by SG Micro Corp. It is designed to supply up to 300mA of output current with a typical dropout voltage of 165mV.
This regulator features a wide operating input voltage range of 1.6V to 5.5V and offers fixed output voltages from 0.8V to 5.0V, with an adjustable option also available. The output voltage accuracy is ±2.5% at +25℃. It consumes a low supply current of 20μA typical and a shutdown current of 0.01μA typical.
Key features include logic-controlled shutdown mode, short-circuit current limit, and thermal shutdown protection. The device also has an automatic discharge function for quick VOUT discharge when disabled. It operates reliably within a temperature range of -40℃ to +85℃.

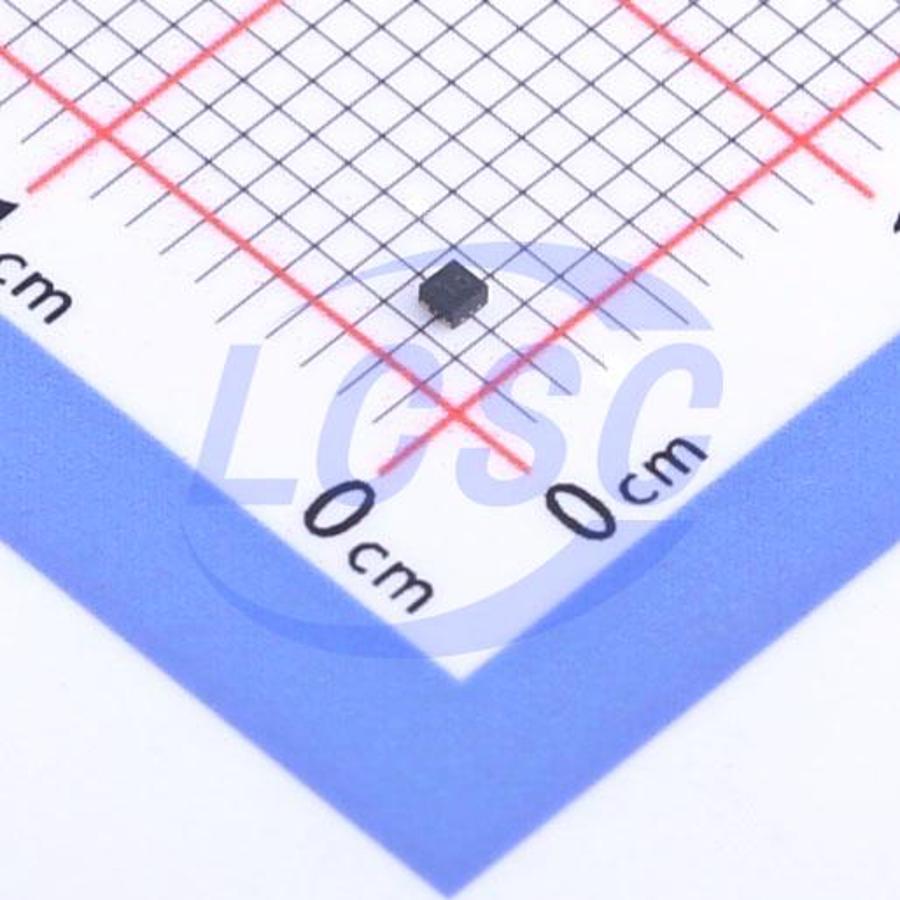

The SGM2036-1.8YUDH4G/TR is available in a compact UTDFN-1x1-4L package, suitable for surface mount applications. Its design makes it ideal for portable electronics, modems, cellular telephones, and PCMCIA cards.
The maximum input voltage is 5.5V.
The SGM2036-1.8YUDH4G/TR can supply up to 300mA of output current.
The typical dropout voltage is 165mV at 300mA output current.
The operating temperature range is -40℃ to +85℃.
It is available in the UTDFN-1x1-4L package.
