| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,101 pcs
|
3101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| PSRR | |
| Tape & Reel |

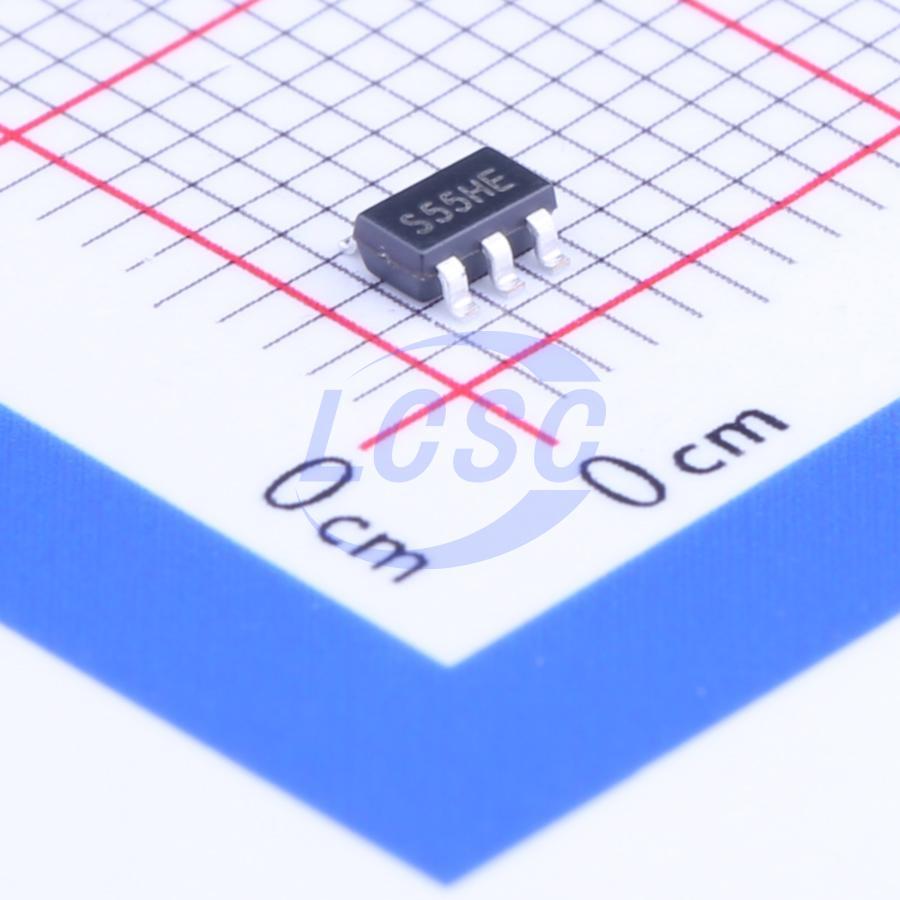

The SGM2028-3.3YN5G/TR from SG Micro Corp is a low power, low dropout linear regulator designed for portable electronics and other applications requiring stable voltage regulation. It can supply up to 500mA of output current with a typical dropout voltage of 270mV.
This specific variant offers a fixed 3.3V output voltage, suitable for systems requiring a precise supply rail. The device operates from an input voltage range of 2.5V to 5.5V. Key features include current limiting and thermal shutdown protection for enhanced reliability.
The SGM2028 series is available in a compact SOT-23-5 package, making it ideal for space-constrained designs. It operates across a temperature range of -40℃ to +85℃. Note that this part is not recommended for new designs, and alternatives like the SGM2053S are suggested.
Applications for this regulator include modems, MP3 players, cellular telephones, PCMCIA cards, and palmtop computers.
2.5V to 5.5V
3.3V
500mA
270mV typical at 500mA
30μVRMS typical
-40°C to +85°C
SOT-23-5 surface mount package
