| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Voltage | |
| Width |

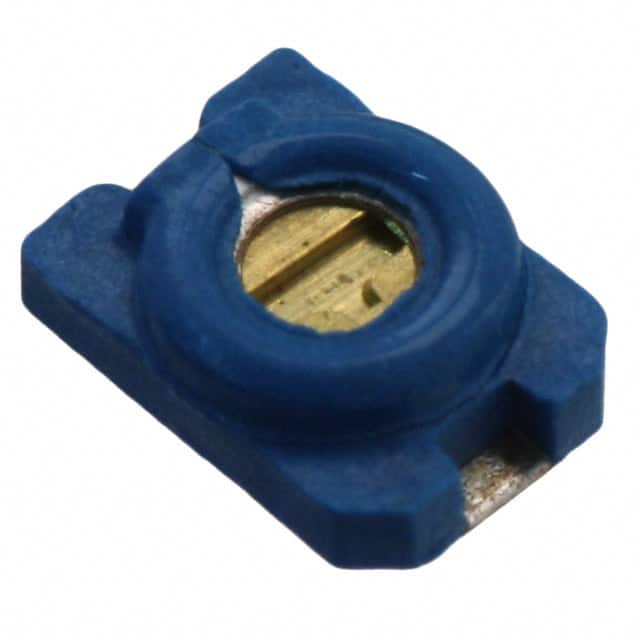

The SGC3S060 is a ceramic trimmer capacitor from Sprague-Goodman, offering a capacitance range of 2 to 6 pF. It is rated for a voltage of 500V and has a typical Q factor of 500 at 1MHz, making it suitable for RF tuning applications.
This component features a top adjustment type and a low profile design. It is housed in a surface mount package with dimensions of 4.50mm length, 3.20mm width, and 1.50mm height. The operating temperature range is -40°C to 85°C.
The dielectric material is ceramic. The part is designed for surface mount mounting and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $0.99 | $0.99 |
| 25+ | $0.92 | $0.92 |
| 50+ | $0.88 | $0.88 |
| 100+ | $0.84 | $0.84 |
| 250+ | $0.78 | $0.78 |
| 500+ | $0.75 | $0.75 |
| 1,000+ | $0.83 | $0.83 |
| 2,000+ | $0.79 | $0.79 |
| 3,000+ | $0.77 | $0.77 |
| 5,000+ | $0.74 | $0.74 |
| 7,000+ | $0.72 | $0.72 |
| 10,000+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance range is 2 to 6 pF.
The rated voltage is 500V.
The operating temperature range is -40°C to 85°C.
The typical Q factor is 500 at 1MHz.
The adjustment type is top adjustment.
The mounting type is surface mount.
The dielectric material is ceramic.
