Mfr Part #:

SGAS15E24-P1J

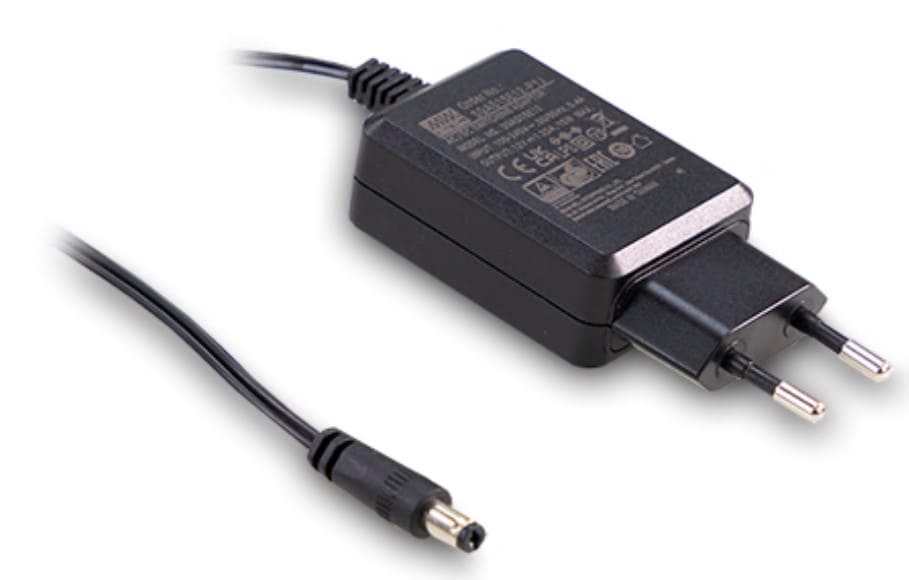

The Mean Well USA SGAS15E24-P1J is a 15W AC/DC wall mount adapter providing a 24VDC output at 625mA. It features a compact, space-saving design with universal AC input.

Stock on Request

SGAS15E24-P1J Description

Short technical summary and product information.

The Mean Well USA SGAS15E24-P1J is a highly reliable, compact AC/DC wall-mount adapter designed for various applications. This 15W power supply delivers a stable 24VDC output with a current rating of 625mA.

It features a universal AC input range (90-264VAC) and a 2-pin Europlug connector, making it suitable for use in Europe. The adapter operates with high efficiency up to 86% and boasts extremely low no-load power consumption below 75mW, complying with EU ErP and CoC Version 5 standards.

Designed for safety and reliability, the SGAS15E24-P1J includes protections against short circuit, overload, and over voltage. It is housed in a fully enclosed plastic case and meets TUV BS EN/EN62368-1 safety standards. The dimensions are 57.6mm x 42.1mm x 24.7mm, making it a space-saving solution for power needs.

SGAS15E24-P1J Quick Information

Product Type: AC/DC Wall Adapter

Series: SGAS15E

Canonical Name: Mean Well USA SGAS15E24-P1J AC/DC Wall Mount Adapter

Subcategory: Wall Mount

SGAS15E24-P1J Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SGAS15E24-P1J Features

15W total output power.
24VDC output voltage at 625mA.
Universal 90-264VAC input range.
Compact and space-saving design.
Short circuit, overload, and over voltage protection.

SGAS15E24-P1J Applications

Suitable for consumer electronics.
Ideal for telecommunication devices.
Used in office facilities.
Applicable to industrial equipment.

SGAS15E24-P1J FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

90-264VAC

What is the output voltage?

24VDC

What is the operating temperature range?

-20°C to 70°C

What is the efficiency?

86% typical

What protections does it have?

Short circuit, overload, over voltage

What connectors does it use?

Input: CEE 7/16 Europlug; Output: 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug, positive center

What safety standards does it meet?

TUV BS EN/EN62368-1, EAC TP TC 004

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Mean Well USA
Applications	ITE (Commercial)
Approval Agency	CB, CE, EAC, FCC, GS, TUV, UKCA
Cord Length	1.80m (70.9")
Current	625mA
Efficiency	86%
Form	Class II
Height	24.7mm (0.97")
Input Connector	2-pin Europlug
Input Type	Fixed Blade
Length	57.6mm (2.27")
Mounting Type	Wall Mount
No Load Power Consumption	75mW
Operating Temperature	-20°C ~ 70°C
Output Connector	2.1mm I.D. x 5.5mm O.D. x 11.0mm
Polarization	Positive Center
Power (Watts)	15W
Protection	Short Circuit, Overload, Over Voltage
Region Utilized	Europe
SVHC Present	Not Present
Standard Number	62368-1
Storage Temperature	-20°C ~ 85°C
Voltage	24VDC
Voltage Range	90-264 VAC
Width	42.1mm (1.66")
