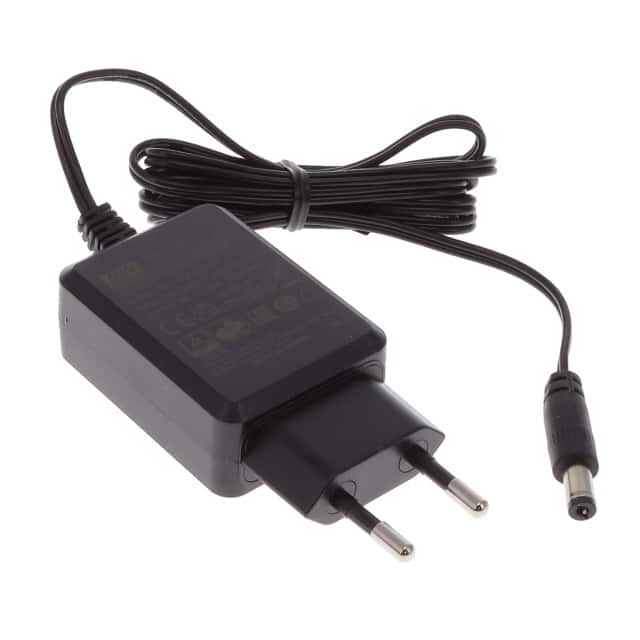

The SGAS15E09-P1J from Mean Well USA is a highly reliable, compact AC/DC wall mount adapter designed for efficiency and convenience. This 15W power supply operates with a universal input voltage range of 90-264 VAC and delivers a stable 9VDC output.
Key features include an efficiency rating of 84% and a low no-load power consumption of less than 75mW, complying with EU ErP and CoC Version 5 standards. The adapter is fully enclosed in a plastic case, offering protection against short circuits, overloads, and over-voltage. It meets international safety regulations, including TUV BS EN/EN62368-1.
Designed for applications such as consumer electronics, telecommunication devices, office facilities, and industrial equipment, the SGAS15E09-P1J is a Class II power unit with a standard 2-pin European plug. Its extreme small and space-saving form factor makes it ideal for power strips and other confined spaces. The output connector is a barrel plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm, with positive center polarization.
The output voltage is 9 VDC.
The maximum output current is 1.66A.
The power rating is 15W.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 70°C.
The dimensions are 57.6mm x 42.1mm x 24.7mm.
Yes, it is RoHS3 Compliant.
