| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

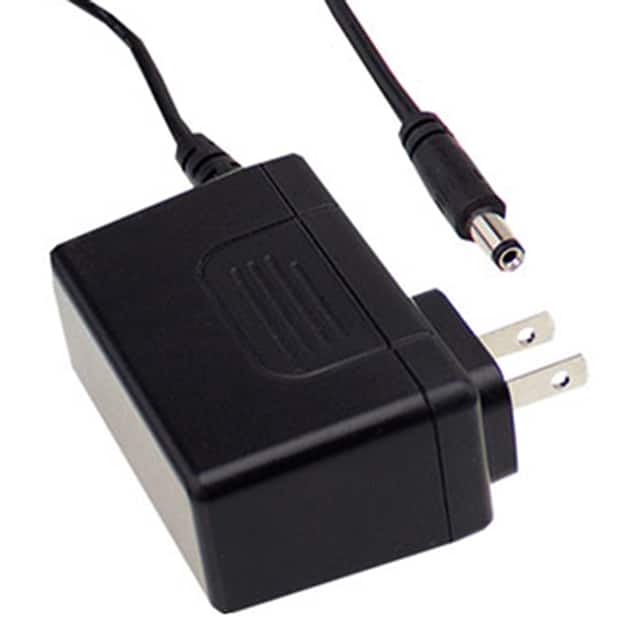

The Mean Well USA SGA40U05-P1J is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 5A, providing a total power of 25W. This adapter features a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization.
Designed for efficiency, it meets Level VI standards and operates within a temperature range of -20°C to 50°C. The unit has a low no-load power consumption of 75mW (Max). Its dimensions are 75.5mm x 32.0mm x 47.5mm, making it suitable for various space-constrained environments. The adapter is certified by CB and cULus approval agencies, ensuring compliance and safety for North American usage.
This Class II wall mount adapter is suitable for applications requiring reliable power conversion. Its robust design and adherence to efficiency standards make it a practical choice for powering electronic devices.
The output voltage is 5V DC.
It is a wall mount (Class II) design.
The operating temperature range is -20°C to 50°C.
It has a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The input connector is a NEMA 1-15P.
It meets Level VI efficiency.
It is approved by CB and cULus.
