| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

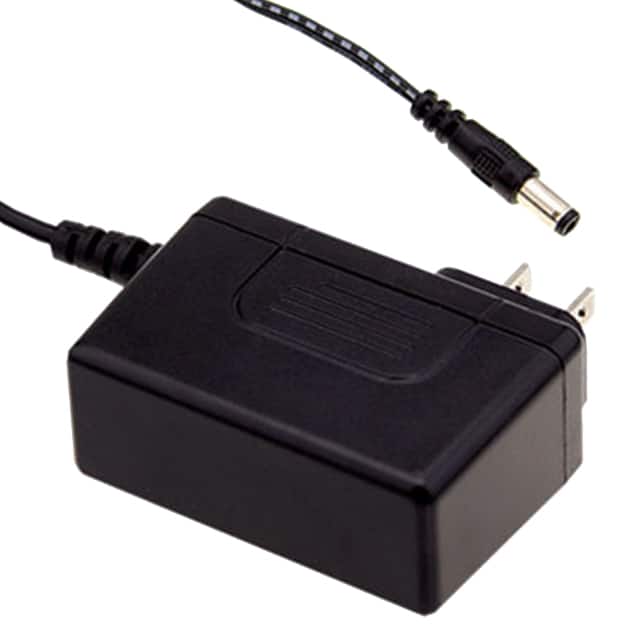

The Mean Well USA SGA18U24-P1J is a compact and efficient AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 24VDC output at 750mA, providing a total power of 18W. This adapter meets Level VI efficiency standards, ensuring reduced energy consumption.
The unit features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. Its operating temperature range is from -20°C to 60°C, making it suitable for various environments. The adapter has a low no-load power consumption of 75mW (Max).
With dimensions of 75.5mm x 32.0mm x 47.5mm, it offers a space-saving solution. The cord length is approximately 1.50 meters (59 inches). The SGA18U24-P1J is approved by CB and cULus, and it is designed for use in North America. It is classified as RoHS3 Compliant and has an MSL of 1 Unlimited.
The SGA18U24-P1J adapter provides a 24VDC output at 750mA.
The power rating of the SGA18U24-P1J is 18W.
This adapter meets Level VI efficiency standards.
The operating temperature range is -20°C to 60°C.
The adapter uses a NEMA 1-15P input connector.
The output connector is a barrel plug with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm size and positive center polarization.
Yes, the SGA18U24-P1J is RoHS3 Compliant.
