| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

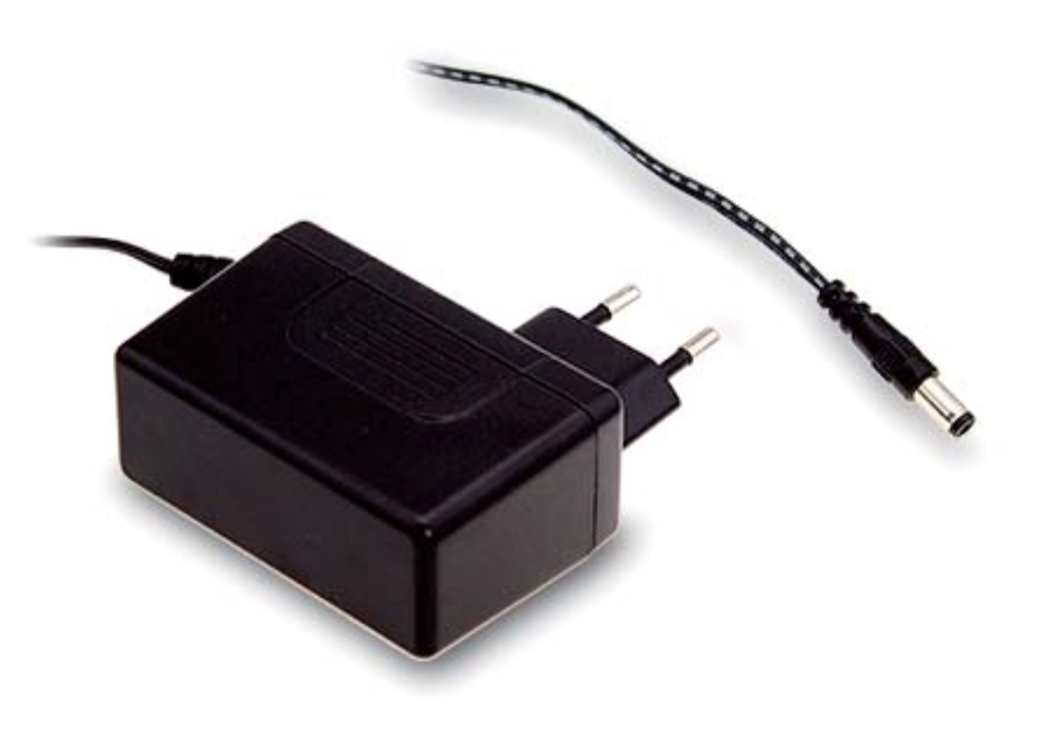

The Mean Well SGA18E48-P1J is a compact AC/DC wall mount power adapter designed for various applications. It delivers a stable 48VDC output at up to 18W of power, with an output current of 0.375A. The adapter operates with a wide input voltage range of 90-264 VAC and meets Level VI efficiency standards, ensuring energy savings.
With dimensions of 75.5mm x 32.0mm x 47.5mm, this wall mount adapter is suitable for space-constrained designs. It features a fixed blade input connector and a 5.5/2.1mm barrel plug output connector with a positive center polarization. The operating temperature range is from -20°C to 60°C, making it versatile for different environments. The no-load power consumption is a maximum of 75mW.
The output voltage is 48 VDC.
The maximum output current is 0.375 A.
The power rating is 18 W.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 60°C.
The dimensions are 75.5mm x 32.0mm x 47.5mm.
The RoHS status is RoHS3 Compliant.
