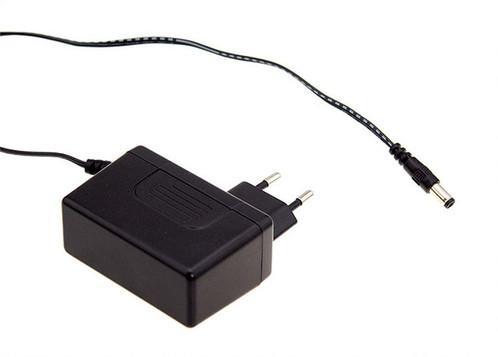

The Mean Well USA SGA18E18-P1J is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at 1A, providing a total power of 18W.
This adapter meets the stringent Level VI efficiency standards, ensuring optimal energy consumption. It operates reliably within an ambient temperature range of -20°C to 60°C, making it suitable for various environments. The unit features a compact design with dimensions of 75.5mm x 32.0mm x 47.5mm and a cord length of 1.50 meters.
Connectivity is facilitated by a CEE 7/16 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The adapter is designed as a Class II wall mount unit, offering convenience and safety for integration into electronic systems.
100-240 VAC.
18V at 1A, with 18W output power.
-20°C to 60°C.
Wall mount (Class II) with a CEE 7/16 input connector and a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output.
Positive center.
75mW maximum.
Level VI.
