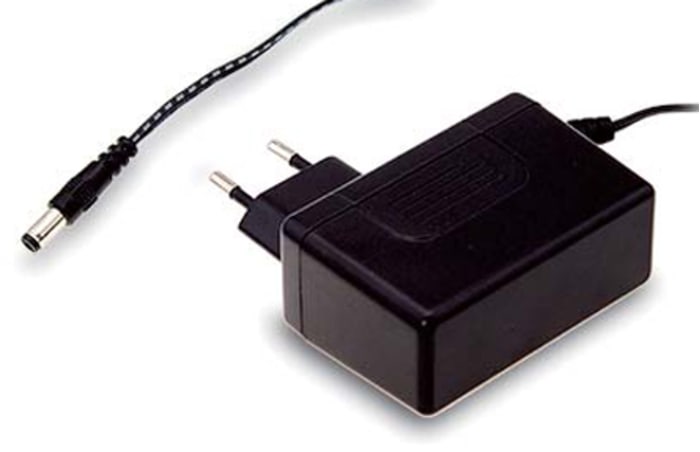

This Mean Well SGA18E15-P1J is an 18W plug-in AC/DC adapter designed for versatile power applications. It delivers a stable 15V dc output with a maximum current of 1.2A. The adapter complies with Level VI energy efficiency standards, ensuring reduced power consumption.
Featuring a slim, compact, and fully enclosed plastic case, this wall-mount adapter is suitable for various consumer electronics, office facilities, industrial equipment, and telecommunication devices. It accepts a universal AC input range and includes protection against short circuit, overvoltage, and overload.
The adapter has a 1.5m cord length and a standard output connector (2.1mm ID x 5.5mm OD x 11mm) with positive center polarization. Its operating temperature range is -20°C to 60°C, and it boasts a minimum MTBF of 450,000 hours.
-20°C to 60°C.
100-240V AC (universal input).
15V DC at 1.2A.
2.1mm inner diameter x 5.5mm outer diameter barrel plug, centre positive, 11mm length.
Level VI.
Wall mount (Class II).
1.5 meters (59 inches).
