| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

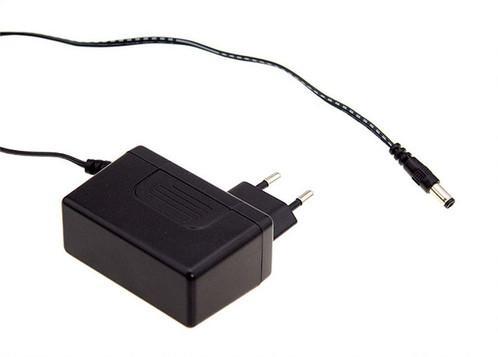

The Mean Well USA SGA18E12-P1J is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a current rating of 1.5A, providing a total power of 18W. This adapter meets the stringent Level VI efficiency requirements, ensuring optimal energy usage.
Featuring a compact and convenient wall mount form factor (Class II), the SGA18E12-P1J is suitable for various setups. Its input accepts a wide voltage range of 100-240 VAC, with a fixed blade input connector compatible with European outlets (CEE 7/16). The output is delivered via a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, featuring a positive center polarization.
The operating temperature range for this adapter is from -20°C to 60°C, making it reliable in diverse environmental conditions. It also boasts a low no-load power consumption of just 75mW (Max). The dimensions are 75.5mm in length, 32.0mm in width, and 47.5mm in height, with a cord length of approximately 1.00 meter (39.4 inches).
Compliance includes CB, CE, and GS approvals. The RoHS status is RoHS3 Compliant, and it has an MSL rating of 1 (Unlimited).
100-240 VAC.
12V.
1.5A.
18W.
Level VI.
-20°C to 60°C.
75mW maximum.
