| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

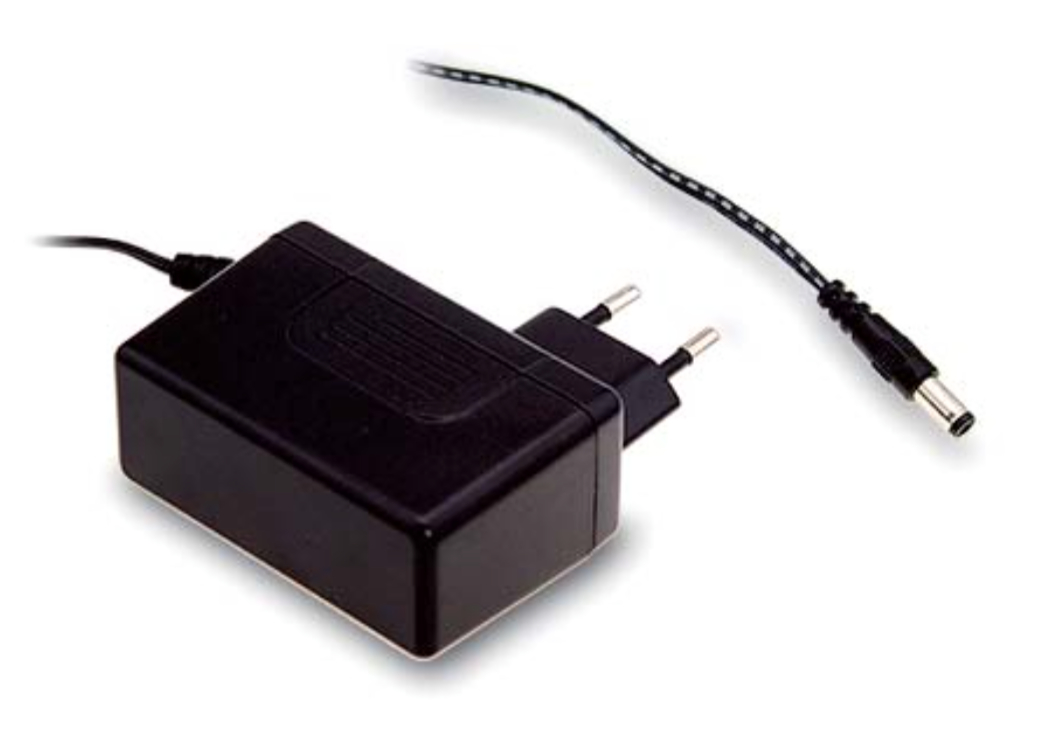

The Mean Well SGA18E09-P1J is a versatile 18W AC/DC wall mount power supply designed for various applications. It delivers a stable 9VDC output with a maximum current of 2A.
This power supply features a compact design with dimensions of 75.5mm x 32.0mm x 47.5mm, making it suitable for space-constrained environments. It operates within a wide input voltage range of 90-264 VAC and complies with Level VI efficiency standards, ensuring energy savings and reduced heat generation. The unit also boasts a low no-load power consumption of 75mW maximum.
Designed for ease of use, the SGA18E09-P1J includes a CEE 7/16 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. It is rated for operation in temperatures ranging from -20°C to 60°C. The wall mount form factor (Class II) simplifies installation in many settings.
9V DC at 2A (18W).
Wall Mount (Class II).
-20°C to 60°C.
90 to 264 VAC.
Level VI.
Less than 75mW (max).
Barrel plug, 2.1mm ID x 5.5mm OD, positive center.
