| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

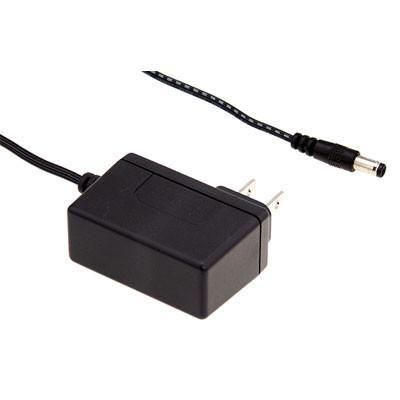

The Mean Well USA SGA12U48-P1J is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 48V output at 12W, with an input voltage range of 100-240 VAC and a current rating of 250mA.
This adapter meets Level VI efficiency standards, ensuring energy savings. It operates reliably within a temperature range of -20°C to 60°C. The input connector is a NEMA 1-15P, and the output is provided via a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center.
With dimensions of 62.2mm x 27.4mm x 45.5mm, it is suitable for space-constrained designs. The adapter features a low no-load power consumption of 75mW (Max) and has received CB and cURus agency approvals.
100-240 VAC.
48 VDC at 250mA.
12W.
Level VI.
-20°C to 60°C.
Wall mount (Class II).
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm, positive center.
