SG7905AT The SG7905AT from Microchip Technology is a linear voltage regulator providing a fixed -5V output with a 500mA current capability. It features over current and over temperature protection.
Mfr Part #:

SG7905AT

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The SG7905AT from Microchip Technology is a linear voltage regulator providing a fixed -5V output with a 500mA current capability. It features over current and over temperature protection.
✓ Total Stock: 2,568 pcs
$ Price Range: $23.40

SG7905AT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,568 pcs
On Request
2568 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SG7905AT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Protection Features
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

SG7905AT Description

Short technical summary and product information.

The SG7905AT is a linear voltage regulator manufactured by Microchip Technology. It is designed to provide a stable negative voltage output of -5V with a maximum output current of 500mA. The device operates over a wide temperature range of -55°C to 150°C, making it suitable for various environmental conditions.



Key electrical specifications include a maximum input voltage of -35V and a maximum voltage dropout of 2.3V at 500mA. It also offers a Power Supply Rejection Ratio (PSRR) of 54dB at 120Hz. Protection features such as over current, over temperature, and short circuit protection are integrated to enhance reliability and prevent damage.

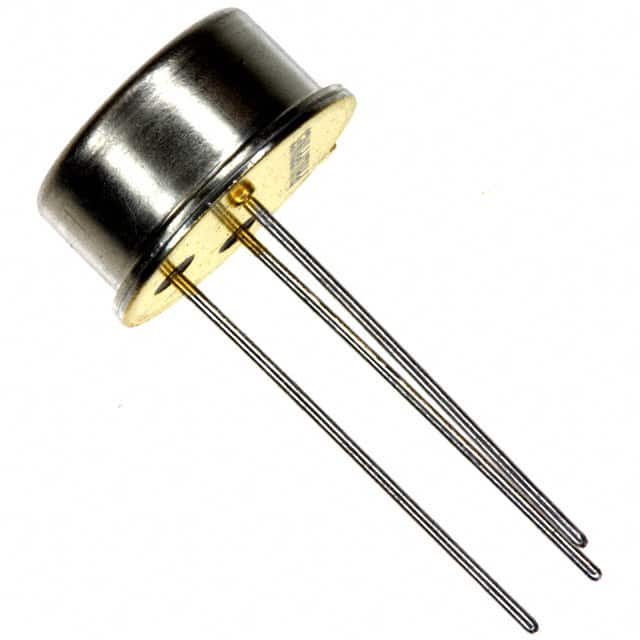

The SG7905AT is available in a Through Hole package, specifically TO-39, and the supplier device package is TO-99. This mounting type is suitable for applications requiring robust mechanical connections.



This component is classified under Voltage Regulators - Linear and is part of the Power Management (PMIC) category. Its fixed output type and negative output configuration make it a versatile choice for power supply designs requiring a specific negative voltage rail.

SG7905AT Quick Information

Product Type: Voltage Regulator - Linear
Canonical Name: SG7905AT Linear Voltage Regulator
Subcategory: Power Management

SG7905AT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SG7905AT Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SG7905AT Features

  • Fixed -5V negative output voltage.
  • Maximum output current of 500mA.
  • Wide operating temperature range: -55°C to 150°C.
  • Integrated over current and thermal protection.
  • Through Hole TO-39 package.

SG7905AT Applications

  • Power supply circuits requiring negative voltage.
  • Linear regulation in electronic systems.
  • Applications needing over-current protection.
  • Designs with wide temperature requirements.

SG7905AT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SG7905AT?

The SG7905AT provides a fixed output voltage of -5V.

What is the maximum output current for the SG7905AT?

The maximum output current for the SG7905AT is 500mA.

What is the operating temperature range of the SG7905AT?

The SG7905AT operates within a temperature range of -55°C to 150°C.

What protection features are included in the SG7905AT?

The SG7905AT includes over current, over temperature, and short circuit protection features.

How is the SG7905AT packaged?

The SG7905AT is available in a TO-39 package and is mounted through hole.
