Mfr Part #:

SG7815K

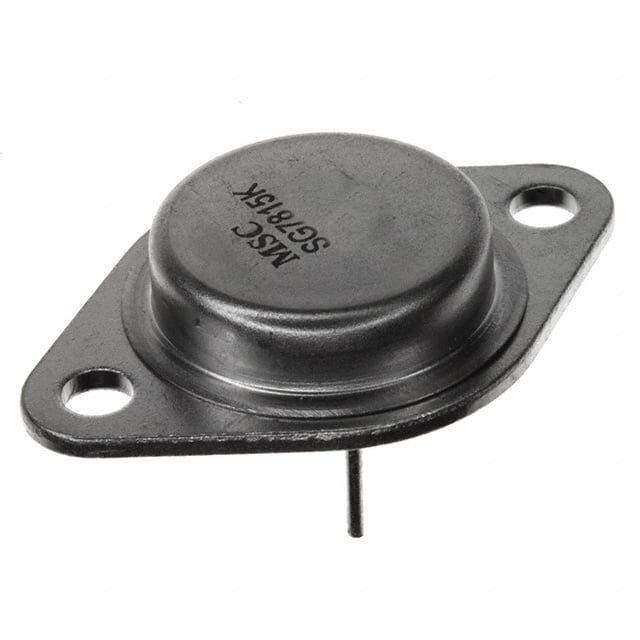

Name: SG7815K
Brand: Microchip Technology
SKU: SG7815K

Description:

IC REG LINEAR 15V 1.5A TO204AD

Stock on Request

SG7815K Description

Short technical summary and product information.

IC REG LINEAR 15V 1.5A TO204AD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Voltage Regulators - Linear
Manufacturer Name	Microchip Technology
Control Features	Current Limit, Enable
Current	7 mA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature	-55°C ~ 125°C (TA)
Output Configuration	Positive
Output Type	Fixed
PSRR	60dB (120Hz)
Protection Features	Over Current, Over Temperature
Supplier Device Package	TO-204AD (TO-3)
Voltage	35V
Voltage Dropout (Max)	2.5V @ 500mA
