| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
495 pcs
|
495 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Voltage | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

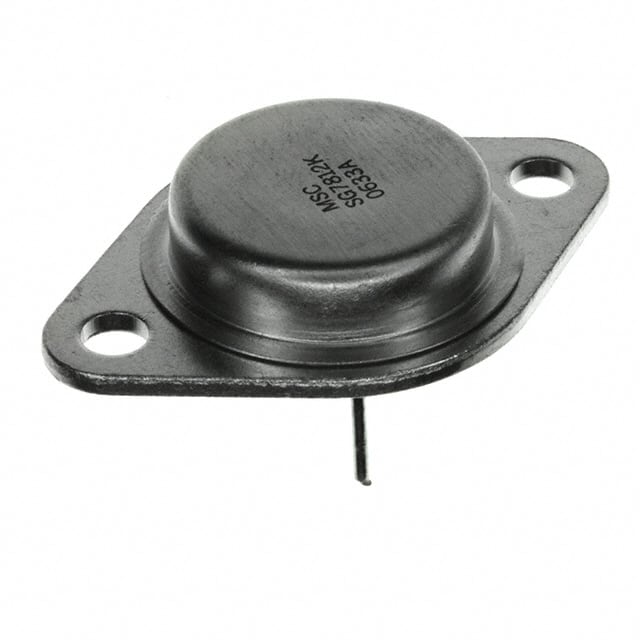

The SG7812K-883B from Microchip Technology is a fixed 12V positive linear voltage regulator. It offers an output current of 7mA and can accept an input voltage up to 35V, with a typical dropout voltage of 2.5V at 1A. This device is protected against over current and over temperature conditions.
Designed for through-hole mounting, the regulator comes in a TO-3 (TO-204AA) package, making it suitable for applications requiring robust thermal performance. The operating temperature range is -55°C to 125°C, ensuring reliability in demanding environments. Its PSRR is rated at 61dB at 120Hz.
This component is ideal for power management in various electronic systems where a stable 12V supply is required. Its inherent simplicity and protection features make it a reliable choice for linear regulation tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SG7812K-883B provides a fixed 12V output voltage.
The operating temperature range is -55°C to 125°C.
This component is designed for through-hole mounting.
It uses the TO-3 package.
