The SG7805K from Microchip Technology is a linear voltage regulator designed for applications requiring a stable positive voltage output. It features a fixed output configuration and can handle an input voltage of up to 35V, delivering a typical current of 7mA. The device includes over-current and over-temperature protection features, enhancing its reliability.
This regulator operates across a wide temperature range of -55°C to 125°C, making it suitable for demanding environments. It offers a voltage dropout of 2.5V at 500mA and has a Power Supply Rejection Ratio (PSRR) of 68dB at 120Hz. The SG7805K is packaged in a TO-204AD (TO-3) case and is designed for through-hole mounting.
Key electrical characteristics include its 35V maximum input voltage, 7mA operating current, and a fixed positive output. The integrated protection mechanisms, such as current limit and enable control, provide design flexibility and safety. Its wide operating temperature range and robust construction make it a reliable choice for various power management circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SG7805K has a maximum operating voltage of 35V.
The SG7805K operates from -55°C to 125°C.

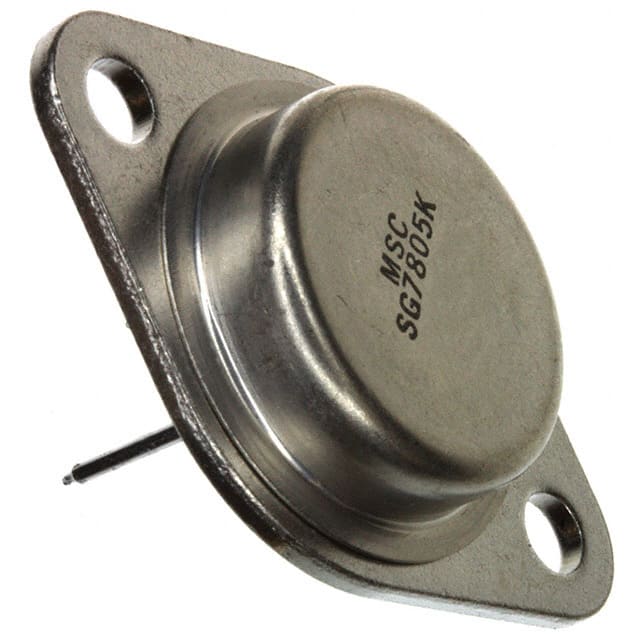

The SG7805K is available in a TO-204AD (TO-3) package.
The SG7805K includes over current and over temperature protection.
