| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control Features | |
| Current | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout | |
| Voltage Dropout (Max) |
The Microchip Technology SG7805AK is a linear voltage regulator designed for fixed 5V output applications. It provides a stable output voltage with a current rating of up to 1.5A, suitable for various power management needs. Key electrical features include a 50V voltage rating and a typical voltage dropout of 2.5V at 500mA. Protection mechanisms such as over current and over temperature are integrated to ensure reliable operation.

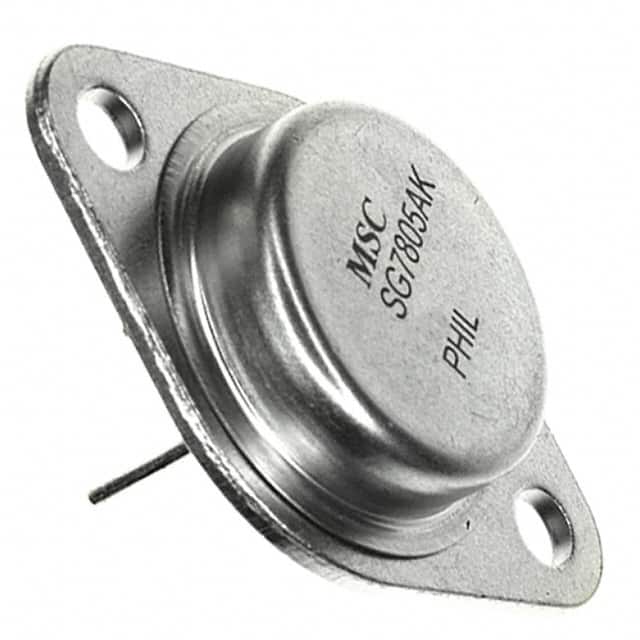

This device is housed in a TO-204AD (TO-3) package, requiring through-hole mounting. The operating temperature range is -55°C to 125°C (TA), making it suitable for demanding environments. The SG7805AK is part of Microchip Technology's range of linear voltage regulators, offering a straightforward solution for power regulation tasks.
With its fixed output and robust protection features, the SG7805AK is a reliable choice for applications requiring a consistent 5V supply. Its through-hole mounting and TO-3 package are characteristic of components designed for robust power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SG7805AK provides a fixed 5V output voltage.
The SG7805AK has a current rating of 1.5A.
The SG7805AK includes over current and over temperature protection.
The SG7805AK is available in a TO-204AD (TO-3) package.
The SG7805AK operates from -55°C to 125°C (TA).
The voltage dropout is 2.5V at 500mA.
