| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

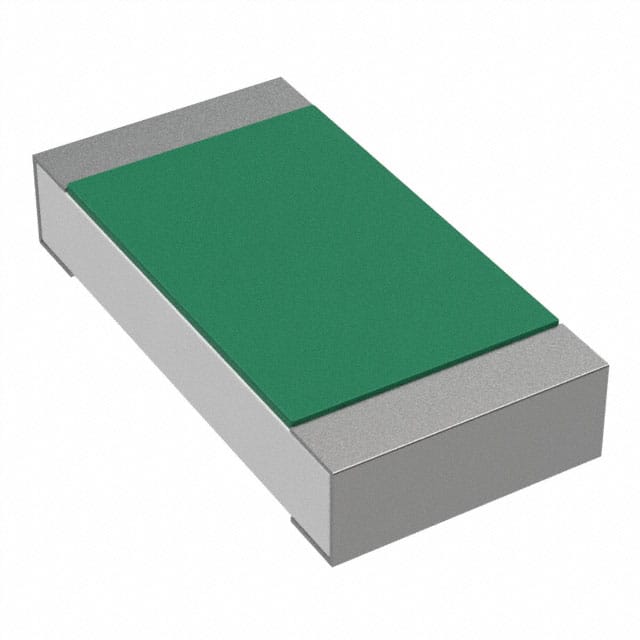

The KOA Speer Electronics SG73S2BTTD56R0F is an anti-surge, thick film chip resistor designed for surface mount applications. It offers a nominal resistance of 56 Ohms with a tight tolerance of ±1%. The power rating for this component is 1/3W.
This resistor features a 1206 package size and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±200ppm/°C. It is built with thick film technology and has 2 terminations.
The SG73S series is superior to RK73B/RK73H series in surge withstanding voltage and high power. Products with lead-free terminations meet EU RoHS requirements. This component is AEC-Q200 tested, making it suitable for automotive applications. It is also moisture resistant and pulse withstanding.
Suitable for both reflow and flow solderings, this resistor is designed for reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 56 Ohms.
The tolerance is ±1%.
The power rating is 1/3W.
The operating temperature range is -55°C to 155°C.
The package size is 1206.
Yes, the SG73S2BTTD56R0F resistor is AEC-Q200 tested.
