| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Material | |
| Number of Terminations | |
| Operating Temperature | |
| Pitch | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

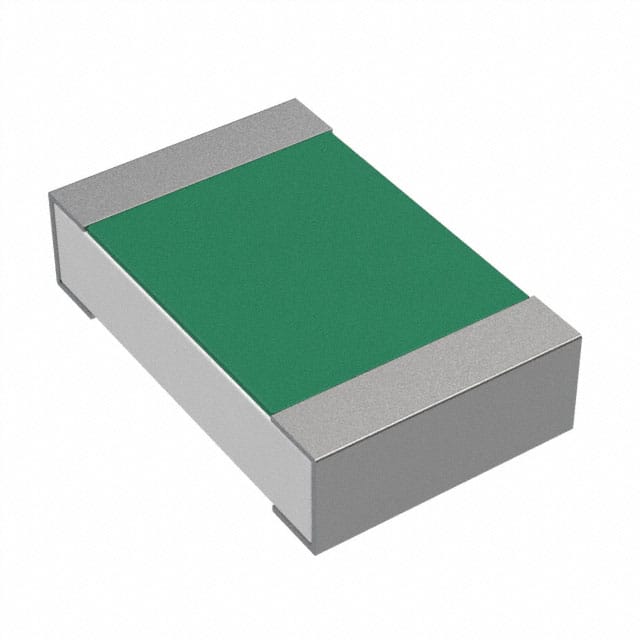

The KOA Speer Electronics SG73S2ATTD3001F is a surface-mount thick film chip resistor designed for applications requiring high surge voltage and power handling capabilities. It features a resistance value of 3 kΩ with a tight tolerance of ±1% and a power rating of 1/4W.
This resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. Its construction utilizes thick film technology.
Designed for reliability, the SG73S2ATTD3001F is AEC-Q200 tested, making it suitable for automotive applications. It also offers moisture resistance and pulse withstanding capabilities. The resistor is suitable for both reflow and flow soldering processes and features lead-free terminations meeting EU RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3 kΩ.
The tolerance is ±1%.
The power rating is 1/4W.
The operating temperature range is -55°C to 155°C.
The package size is 0805 (2012 Metric).
Yes, the SG73S2ATTD3001F is AEC-Q200 tested.
Yes, products with lead-free terminations meet EU RoHS requirements.
