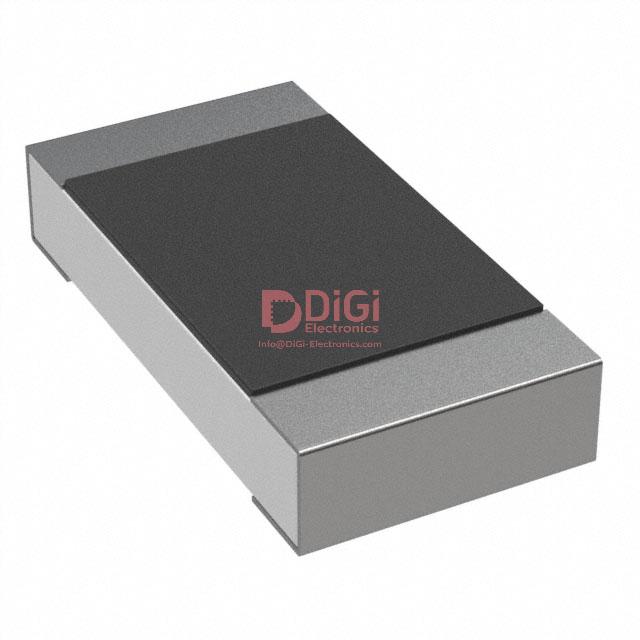

SG73P2ETTD151J The KOA Speer Electronics SG73P2ETTD151J is a surface mount chip resistor with a resistance of 150 Ohms and a tolerance of 5%. It is rated for 0.5W of power.
Mfr Part #:

SG73P2ETTD151J

Available from 1 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics SG73P2ETTD151J is a surface mount chip resistor with a resistance of 150 Ohms and a tolerance of 5%. It is rated for 0.5W of power.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.02

SG73P2ETTD151J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SG73P2ETTD151J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

SG73P2ETTD151J Description

Short technical summary and product information.

This SG73P2ETTD151J is a surface mount chip resistor from KOA Speer Electronics. It features a resistance value of 150 Ohms with a tight tolerance of ±5%. The resistor is designed to handle 0.5W of power and operates within a temperature range of -55°C to 155°C.



Constructed with thick film technology, this component is suitable for applications requiring pulse withstanding capabilities and meets AEC-Q200 automotive standards. The package size is 1210 (3225 Metric), with dimensions of 3.20mm in length and 2.60mm in width, and a height of 0.70mm. It is designed for surface mounting.



Key electrical characteristics include a temperature coefficient of ±200ppm/°C and 2 terminations. The component is RoHS3 compliant and has an MSL rating of 1.

SG73P2ETTD151J Quick Information

Product Type: Chip Resistor - Surface Mount
Series: SG73
Canonical Name: SG73P2ETTD151J Thick Film Chip Resistor
Subcategory: Surface Mount

SG73P2ETTD151J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SG73P2ETTD151J Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SG73P2ETTD151J Features

  • 150 Ohm resistance with 5% tolerance.
  • 0.5W power rating for demanding applications.
  • Wide operating temperature range of -55°C to 155°C.
  • AEC-Q200 automotive qualified.
  • Pulse withstanding thick film construction.

SG73P2ETTD151J Applications

  • Suitable for automotive control modules.
  • Ideal for power supply filtering circuits.
  • Used in general purpose electronic designs.
  • Applicable in high-reliability systems.

SG73P2ETTD151J FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the SG73P2ETTD151J?

The resistance value is 150 Ohms.

What is the tolerance of the SG73P2ETTD151J resistor?

The tolerance is ±5%.

What is the power rating for the SG73P2ETTD151J?

The power rating is 0.5W, or 1/2W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What is the package type for the SG73P2ETTD151J?

The package type is 1210 (3225 Metric) for surface mounting.
