The SG3526DW from Microchip Technology is a DC DC Switching Controller designed for buck and flyback topologies. It features a wide input voltage range of 8V to 35V and supports both step-down and step-up/step-down functions.
This controller operates with a switching frequency between 1Hz and 350kHz, offering a maximum duty cycle of 49%. Key control features include dead time control, enable, frequency control, reset, and soft start. The device is configured for positive output and utilizes a transistor driver output.

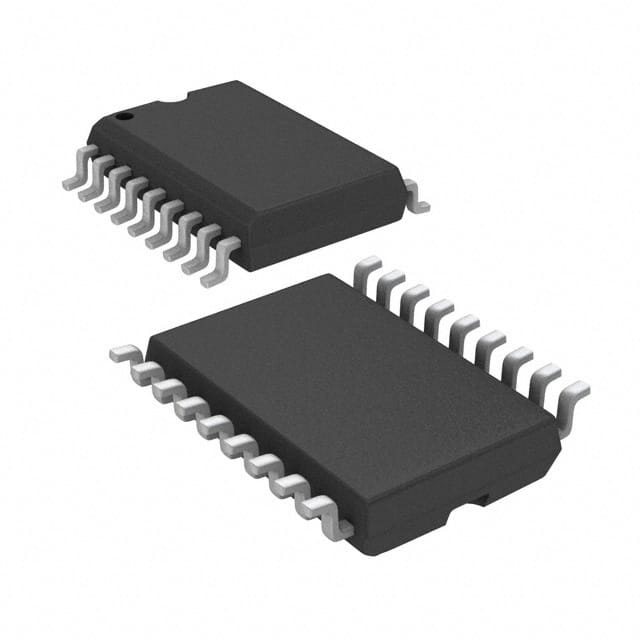

Packaged in an 18-SOIC (0.295", 7.50mm Width) format, the SG3526DW is designed for surface mount applications. It has an operating temperature range of 0°C to 70°C (TA) and includes a synchronous rectifier. The part is RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SG3526DW operates from 8V to 35V.
The SG3526DW is available in an 18-SOIC surface mount package (0.295" width, 7.50mm Width).
0°C to 70°C (ambient).
Buck and flyback topologies.
1Hz to 350kHz.
2 outputs.
