Mfr Part #:

SG3526BN

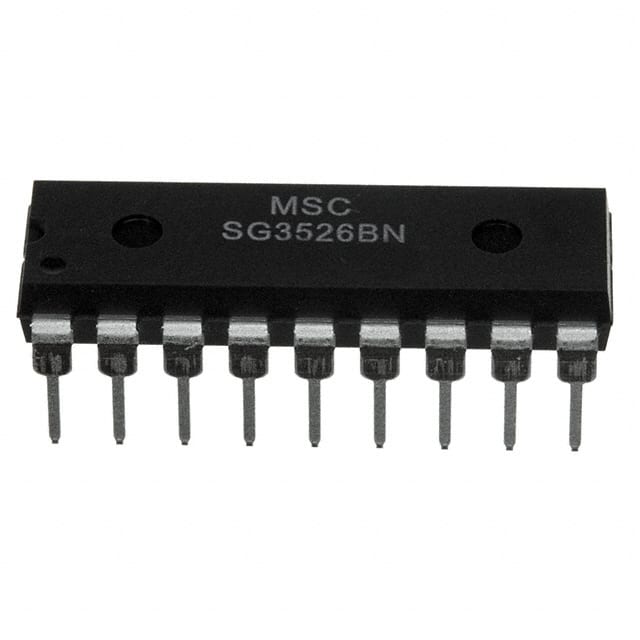

Name: SG3526BN
Brand: Microchip Technology
SKU: SG3526BN

Description:

IC REG CTRLR BUCK/FLYBACK 18DIP

Stock on Request

SG3526BN Description

Short technical summary and product information.

IC REG CTRLR BUCK/FLYBACK 18DIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	DC DC Switching Controllers
Manufacturer Name	Microchip Technology
Clock Sync	No
Control Features	Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Duty Cycle (Max)	49%
Frequency	1Hz ~ 500kHz
Function	Step-Down, Step-Up/Step-Down
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature	0°C ~ 70°C (TA)
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Supplier Device Package	18-PDIP
Synchronous Rectifier	Yes
Topology	Buck, Flyback
Voltage	8V ~ 35V
