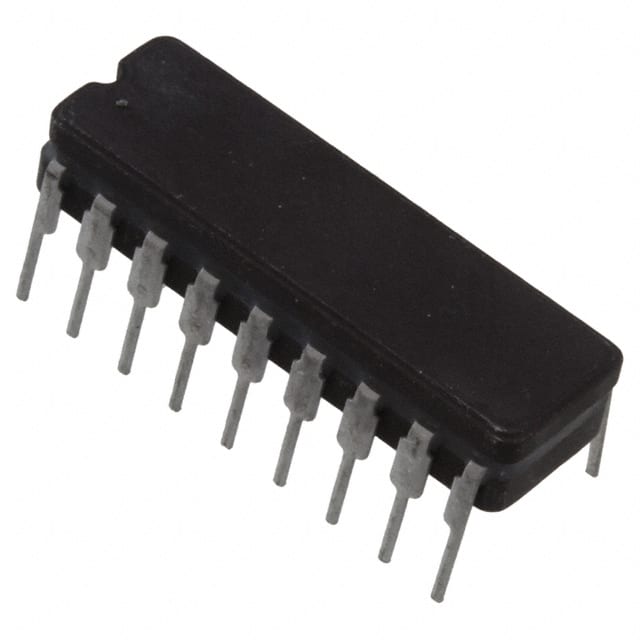

SG2823J The Microchip Technology SG2823J is an 8-element NPN Darlington transistor array designed for through-hole mounting. It offers a 95V collector-emitter voltage and 500mA current rating.
Mfr Part #:

SG2823J

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology SG2823J is an 8-element NPN Darlington transistor array designed for through-hole mounting. It offers a 95V collector-emitter voltage and 500mA current rating.
✓ Total Stock: 8,745 pcs
$ Price Range: $0.99

SG2823J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,745 pcs
On Request
8745 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SG2823J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Mounting Type
Operating Temperature
Supplier Device Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

SG2823J Description

Short technical summary and product information.

The Microchip Technology SG2823J is an 8-element NPN Darlington transistor array housed in an 18-pin DIP package for through-hole mounting. This component is rated for a maximum collector-emitter voltage of 95V and a continuous collector current of 500mA. It features a high DC current gain (hFE) of 1000 at 350mA and 2V, with a Vce saturation of 1.6V at 500µA and 350mA. The operating temperature range is from -55°C to 150°C (TJ).



This transistor array is suitable for applications requiring multiple switching or amplification elements in a single package. Its Darlington configuration provides high current gain, making it useful in driver circuits and low-frequency amplification stages. The through-hole mounting facilitates integration into traditional PCB designs.

SG2823J Quick Information

Product Type: Transistor Array
Canonical Name: Microchip Technology SG2823J 8 NPN Darlington Transistor Array
Subcategory: Transistors - Bipolar (BJT) - Arrays

SG2823J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SG2823J Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SG2823J Features

  • Eight NPN Darlington transistors in one package.
  • Rated for 95V collector-emitter voltage.
  • Handles 500mA continuous collector current.
  • High DC current gain of 1000 minimum.
  • Operates up to 150°C junction temperature.

SG2823J Applications

  • Suitable for driver circuits.
  • Used in low-frequency amplification.
  • Ideal for multiple switching tasks.
  • General purpose electronic circuits.

SG2823J FAQs

6 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating for the SG2823J?

The SG2823J has a collector-emitter voltage rating of 95V.

What is the continuous collector current for the SG2823J?

The SG2823J can handle a continuous collector current of 500mA.

What is the minimum DC current gain (hFE) of the SG2823J?

The minimum DC current gain (hFE) for the SG2823J is 1000 at 350mA and 2V.

What is the operating temperature range for the SG2823J?

The SG2823J operates at a junction temperature up to 150°C.

How is the SG2823J transistor array mounted?

The SG2823J is designed for through-hole mounting.

What package type is the SG2823J available in?

The SG2823J comes in an 18-CDIP package.
