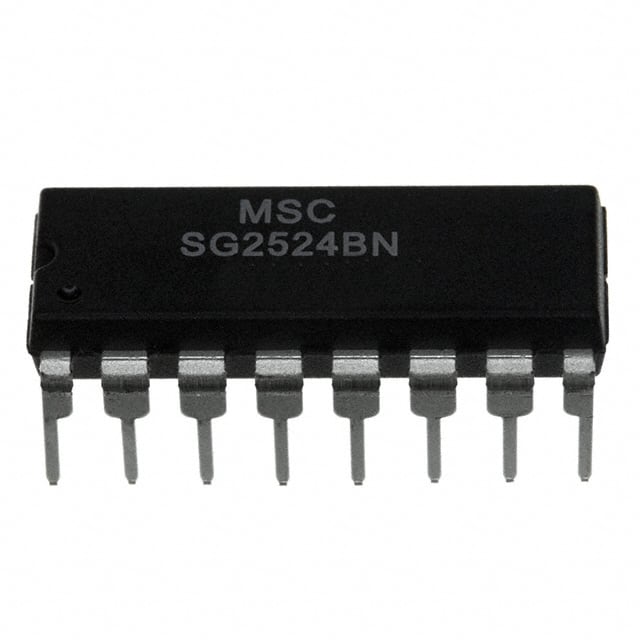

The SG2524BN from Microchip Technology is a versatile DC DC Switching Controller. This component is designed for Step-Up/Step-Down applications and utilizes a Flyback topology. It supports a wide operating voltage range from 7V to 40V and operates at frequencies between 50Hz and 600kHz.
Key electrical features include a maximum duty cycle of 49% and an Enable control feature. The output type is a Transistor Driver, with 2 outputs and 1 output phase. It is designed with a positive output configuration and is not clock synchronous. The operating temperature range is -25°C to 85°C.
This controller is packaged in a 16-DIP (0.300", 7.62mm) format and is designed for Through Hole mounting. The supplier device package is a 16-PDIP. It is specified as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7V to 40V.
16-DIP (0.300", 7.62mm) through-hole package.
-25°C to 85°C.
49%.
Transistor Driver.
Yes.
Enable function.
