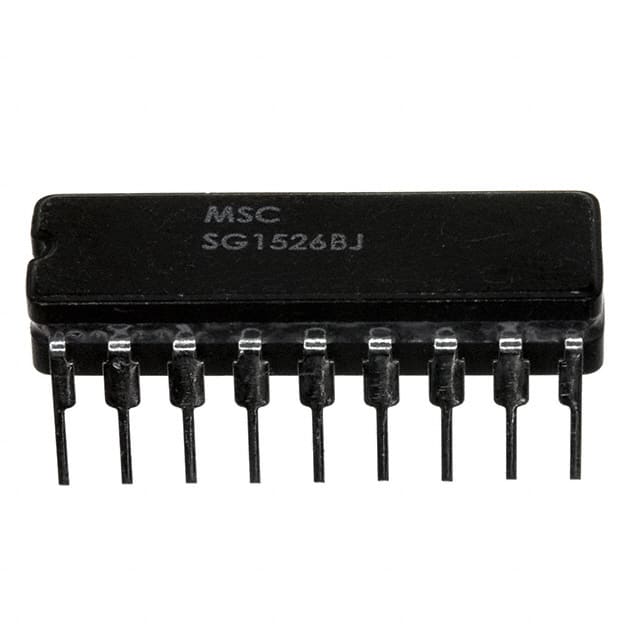

The Microchip Technology SG1526BJ is a versatile DC DC Switching Controller supporting both Buck and Step-Up/Step-Down functions. It is designed for applications requiring Buck and Flyback topologies. This controller operates within a wide voltage range of 8V to 35V and features a maximum duty cycle of 49%.
With an operating temperature range of -55°C to 125°C, the SG1526BJ is suitable for demanding environments. It offers control features such as Dead Time Control, Enable, Frequency Control, Reset, and Soft Start, providing flexibility in power management designs. The device is packaged in an 18-CDIP format and is designed for Through Hole mounting.
Key electrical characteristics include 2 outputs and 1 output phase, with an output type of Transistor Driver and a positive output configuration. The device operates at frequencies from 1Hz up to 500kHz. It also features synchronous rectification and no clock synchronization.
This component is identified by its part number SG1526BJ and manufacturer Microchip Technology. Its RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH Status is REACH Unaffected, though these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SG1526BJ operates within a voltage range of 8V to 35V.
The SG1526BJ can operate between -55°C and 125°C.
The SG1526BJ is available in an 18-CDIP package.
The SG1526BJ is designed for Through Hole mounting.
The maximum duty cycle for the SG1526BJ is 49%.
The SG1526BJ supports Buck and Flyback topologies.
