| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 0122 | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Duty Cycle (Max) | |
| Frequency | |
| Function | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Output Current | |
| Output Phases | |
| Output Type | |
| Package / Case | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Current | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

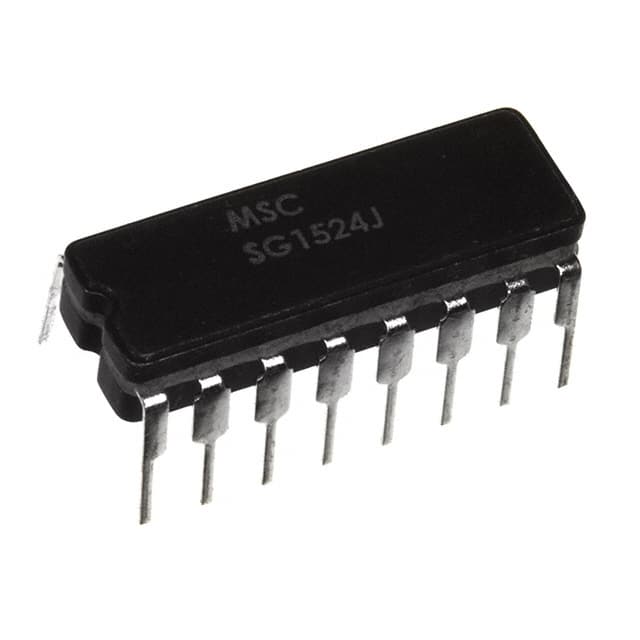

The Microchip Technology SG1524J is a versatile DC DC Switching Controller with a wide operating voltage range of 8V to 40V. It supports multiple topologies including Buck, Flyback, and Push-Pull configurations, offering flexibility in power supply design.
This controller features an oscillator range from 100Hz to 300kHz, dual 50mA output transistors, and a 5V reference with 0.4% line and load regulation. The operating temperature range is -55°C to 125°C (TJ), making it suitable for demanding environments.
Packaged in a 16-CERDIP, the SG1524J is designed for through-hole mounting. Its control features include an Enable function, and it operates with a maximum duty cycle of 49%. The device is specified for commercial applications and includes circuitry for current limiting and shut-down.
This monolithic integrated circuit contains all the control circuitry for a regulating power supply inverter or switching regulator. It can be used for switching regulators of either polarity, transformer coupled DC to DC converters, transformerless voltage doublers and polarity converters, as well as other power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 8V to 40V.
The operating junction temperature range is -55°C to 150°C.
The SG1524J is available in a 16-CERDIP (16-CDIP) through-hole package.
The maximum duty cycle is 49%.
The SG1524J has two transistor driver outputs.
The oscillator frequency range is 100Hz to 300kHz.
