| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,777 pcs
|
8777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Method | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Supplier Device Package | |
| Type |
The SG1524BJ from Microchip Technology is a voltage mode PWM controller IC designed for DC-DC switching applications. It offers a maximum operating supply voltage of 40V and a maximum output current of 100mA. The device operates at a typical switching frequency of 600kHz and features a maximum duty cycle of 49%.

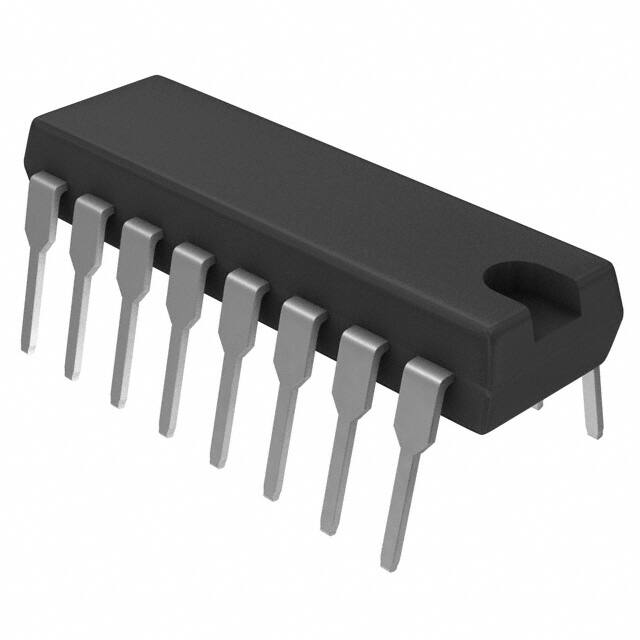

This controller is housed in a 16-CDIP package and supports through-hole mounting. It has a wide operating temperature range from -55°C to 125°C. The SG1524BJ includes features such as 2 PWM outputs and an oscillator accuracy of 45kHz.
Key electrical characteristics include rise and fall times of 200ns and 100ns respectively. The part has specific output voltage ratings of 19V and 5V mentioned. Its control method is voltage mode PWM control.
This component is suitable for various power management designs requiring a robust and reliable switching controller. The through-hole mounting makes it suitable for applications where manual assembly or specific board layouts are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical switching frequency is 600 kHz.
The maximum operating supply voltage is 40 V.
The operating temperature range is -55°C to 125°C.
It is available in a 16-CDIP (0.300", 7.62mm) through-hole package, also supplied as 16-CERDIP.
The maximum output current is 100 mA.
It has two PWM outputs.
