SG117AIG-DESC The Microchip Technology SG117AIG-DESC is an adjustable positive linear voltage regulator. It features a 0.5A output current and an input voltage up to 37V.
Mfr Part #:

SG117AIG-DESC

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology SG117AIG-DESC is an adjustable positive linear voltage regulator. It features a 0.5A output current and an input voltage up to 37V.
✓ Total Stock: 200 pcs
$ Price Range: $23.40

SG117AIG-DESC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 2145 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SG117AIG-DESC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

SG117AIG-DESC Description

Short technical summary and product information.

The SG117AIG-DESC from Microchip Technology is an adjustable positive linear voltage regulator designed for various power management applications. It offers a stable output voltage adjustable down to 1.25V, with a maximum input voltage of 37V. The device can supply an output current of 500mA and has a current limit of 1.5A.

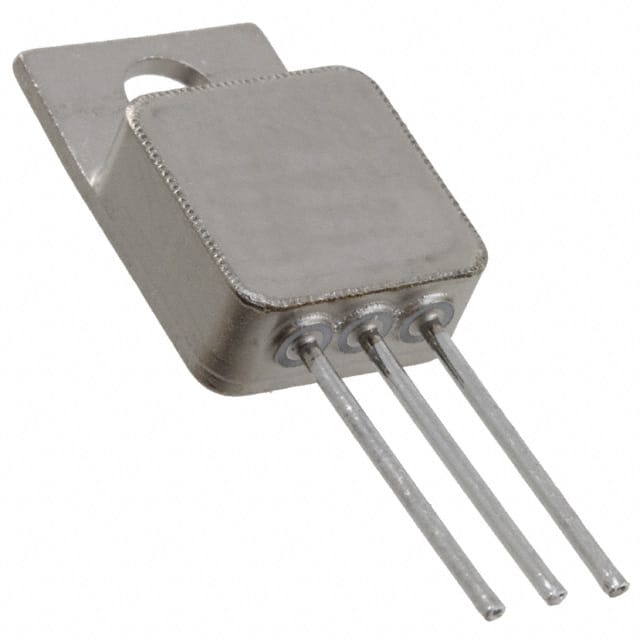

This regulator operates within a wide temperature range of -55°C to 125°C, making it suitable for demanding environments. It is housed in a TO-257-3 package and supports through-hole mounting. The SG117AIG-DESC is part of the SG117, 217, 317(A) family and is designed with over-current protection features.



Key electrical characteristics include a PSRR of 80dB at 120Hz. The component is identified by various part numbers, including 1259-1010-ND and 7703405UA. Its adjustable output and robust operating conditions make it a versatile choice for power supply designs.

SG117AIG-DESC Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: SG117AIG-DESC Adjustable Linear Voltage Regulator
Subcategory: PMIC

SG117AIG-DESC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SG117AIG-DESC Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SG117AIG-DESC Features

  • Adjustable positive linear voltage regulator.
  • 0.5A maximum output current.
  • Up to 37V input voltage.
  • Wide -55°C to 125°C operating temperature.
  • TO-257 through-hole package.

SG117AIG-DESC Applications

  • Power supply regulation.
  • Adjustable voltage output circuits.
  • Industrial control systems.
  • Automotive power management.

SG117AIG-DESC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum input voltage for the SG117AIG-DESC?

The maximum input voltage is 37V.

What is the output current capacity of the SG117AIG-DESC?

It can deliver up to 1.5A of output current.

What is the output voltage range of the SG117AIG-DESC?

The output voltage is adjustable down to 1.25V.

What package type is used for the SG117AIG-DESC?

It is packaged in a TO-257 device package with through-hole mounting.

What is the operating temperature range of the SG117AIG-DESC?

It operates within -55°C to 125°C.

Is the SG117AIG-DESC RoHS compliant?

Yes, it is RoHS3 compliant.
