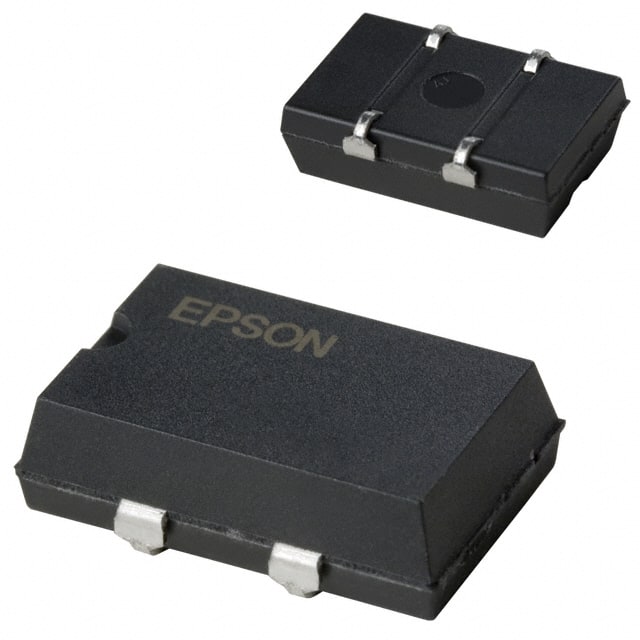

SG-8002JA 50.0000M-PCBLO XTAL OSC XO 50.0000MHZ CMOS SMD. This Epson SG-8002JA oscillator operates at 50MHz with CMOS output and 3.3V supply voltage.
Mfr Part #:

SG-8002JA 50.0000M-PCBLO

Available from 1 distributors
Mfr Name: Epson
Epson
XTAL OSC XO 50.0000MHZ CMOS SMD. This Epson SG-8002JA oscillator operates at 50MHz with CMOS output and 3.3V supply voltage.
✓ Total Stock: 759 pcs

SG-8002JA 50.0000M-PCBLO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
759 pcs
On Request
759 pcs On Request 1 On Request On Request 0038 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SG-8002JA 50.0000M-PCBLO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Type
Voltage
Width
View Similar Products (0)

SG-8002JA 50.0000M-PCBLO Description

Short technical summary and product information.

The Epson SG-8002JA is a crystal-based XO (standard) oscillator providing a 50MHz output frequency with CMOS logic. It operates from a 3.3V nominal supply voltage (2.7V to 3.6V range) and features a frequency stability of ±50ppm over the -20°C to +70°C operating temperature range. The oscillator includes an Enable/Disable function for power management. Current consumption is typically 28mA maximum under no load at maximum frequency. The device is housed in a 4-SOJ package with 5.08mm pitch, measuring 14.00mm x 8.65mm x 4.70mm, suitable for surface mount assembly. This oscillator is designed for general-purpose timing applications requiring a stable clock source.

SG-8002JA 50.0000M-PCBLO Quick Information

Product Type: Oscillator
Series: JA
Canonical Name: Epson SG-8002JA XO (Standard) 50MHz CMOS Oscillator
Subcategory: XO (Standard)

SG-8002JA 50.0000M-PCBLO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

SG-8002JA 50.0000M-PCBLO Features

  • 50MHz CMOS output oscillator.
  • ±50ppm frequency stability.
  • 3.3V supply voltage with 2.7V to 3.6V range.
  • Enable/Disable function.
  • Surface mount SOJ package.

SG-8002JA 50.0000M-PCBLO Applications

  • Used in digital logic clock generation.
  • Ideal for microcontroller timing circuits.
  • Suitable for communication interface clocks.
  • Applicable in industrial control systems.

SG-8002JA 50.0000M-PCBLO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of this oscillator?

3.3V nominal, with a range of 2.7V to 3.6V.

What is the package type?

4-SOJ with 5.08mm pitch.

What is the operating temperature range?

-20°C to 70°C.

Is this oscillator RoHS compliant?

RoHS3 Compliant (unverified).

What is the output frequency?

50 MHz.

What is the frequency stability?

±50ppm.

What output logic does it provide?

CMOS.
